（1）Camera Settings

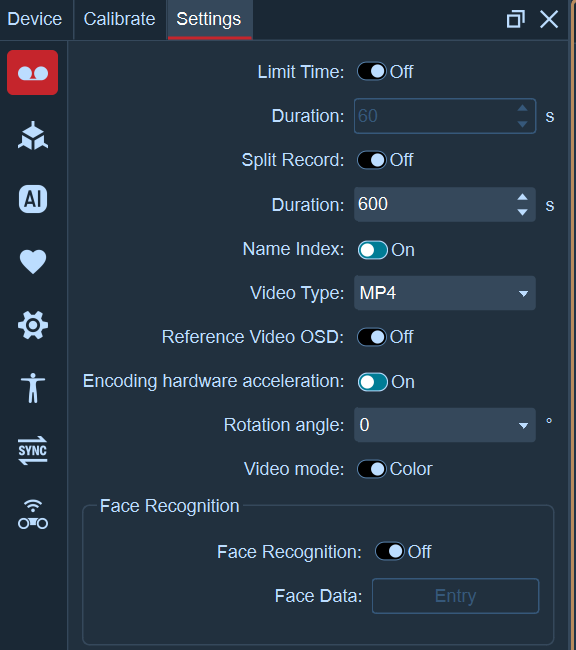

Click the settings button on the toolbar at the top of the software and select "Recording Settings";

Reference Video OSD:

  • When checked, the resolution and frame rate of the USB lens will be displayed in the reference video view.

Rotation Angle:

  • The default rotation angle is set to 0. If the AI camera cannot turn to the desired angle in the Astra software, you can set the rotation angle of the AI camera here. After setting, the view angle of the AI camera in the reference video will rotate to the set degree.
  • Before setting the rotation angle, please disconnect the software and close the reference video view so that it is not displayed. After setting the rotation angle, open the reference video again.

Face Recognition:

  • Used for multi-person body template matching. After enabling, only face recognition templates can be created for human bodies.
  • Face data of multiple people can be entered at once as "face data", which is convenient for creating human bodies later.
  • If only one template remains in the assets and only one unrecognized 22-point body remains in the capture area, the system will match the body to that template without performing face recognition.
image (6)

Reference video data overlay:

  • After completing reference video calibration, right-click in the 3D view to enable overlay of reference video data, at which point the human body skeleton and connecting lines captured by the camera will become visible.
