2. Helen Hayes Model

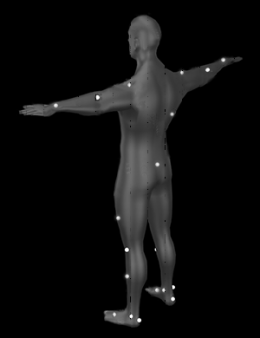

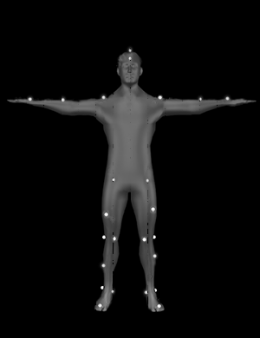

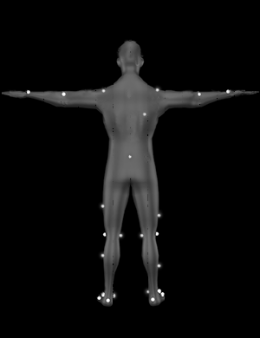

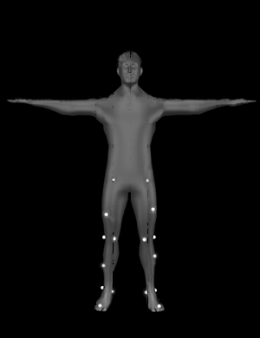

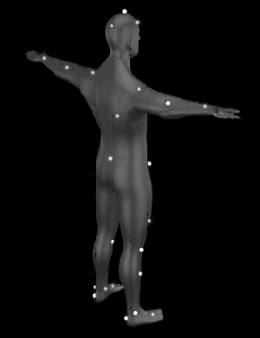

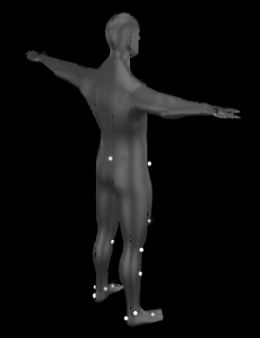

Helen Hayes Sticking Instructions

Description	MarkerName	FullBodyWithHead (29 Static)	FullBody (26 Static)	LowerBody (19 Static)	Drop location
Top	Top.Head	√			At the center and top of the head
In front of the head	Front.Head	√			At the front of the head
Behind the head	Rear.Head	√			At the rear of the head
Left shoulder	L.Shoulder	√	√		The tip of the shoulder crest protrusion
Right shoulder	R.Shoulder	√	√		The tip of the shoulder crest protrusion
Left elbow	L.Elbow	√	√		Lateral Epicondyle
Right elbow	R.Elbow	√	√		Lateral Epicondyle
Left wrist	L.Wrist	√	√		Between the radial styloid process and the ulnar styloid process
Right wrist	R.Wrist	√	√		Between the radial styloid process and the ulnar styloid process
Offset point	R.Offset	√	√		The right scapula on the upper back causes the left and right markers asymmetry
Left front waist	L.ASIS	√	√	√	On the protruding skeleton on the left front pelvis
Right front waist	R.ASIS	√	√	√	On the protruding skeleton on the right front pelvis
Upper Left Thigh	L.Thigh	√	√	√	Middle thigh up 1 cm
Upper Right Thigh	R.Thigh	√	√	√	Middle thigh up 1 cm
Left Lateral Knee	L.Knee	√	√	√	Lateral protrusion of the knee joint axis
Right Lateral Knee	R.Knee	√	√	√	Lateral protrusion of the knee joint axis
Left Medial Knee	L.Knee.Medial	√	√	√	Medial protrusion of the knee joint axis
Right Medial Knee	R.Knee.Medial	√	√	√	Medial protrusion of the knee joint axis
Left Lateral Ankle Joint	L.Ankle	√	√	√	Lateral protrusion of the ankle axis
Right Lateral Ankle Joint	R.Ankle	√	√	√	Lateral protrusion of the ankle axis
Left Medial Ankle Joint	L.Ankle.Medial	√	√	√	Medial protrusion of the ankle axis
Right Medial Ankle Joint	R.Ankle.Medial	√	√	√	Medial protrusion of the ankle axis
Left Toe	L.Toe	√	√	√	Center of the foot, between 2nd and 3rd metatarsals
Right Toe	R.Toe	√	√	√	Center of the foot, between 2nd and 3rd metatarsals
Left Heel	L.Heel	√	√	√	Center of heel skeleton
Right Heel	R.Heel	√	√	√	Center of heel skeleton
Left Shank Wand	L.Shank	√	√	√	On lower shank, aligned with shank long axis and ankle flexion/extension axis
Right Shank Wand	R.Shank	√	√	√	On lower shank, aligned with shank long axis and ankle flexion/extension axis
Sacrum	V.Sacral	√	√	√	Superior aspect at the L5–sacral interface

Helen Hayes Skeleton Description

skeleton Name	Origin Marker	Long Axis	Plane Axis	Parent skeleton
Pelvis	V_Pelvis_Origin	V_Mid_Hip	V.Sacral	GLOBAL
R.Thigh	V_R.Hip_JC	V_R.Knee_JC	R.Knee	Pelvis
L.Thigh	V_L.Hip_JC	V_L.Knee_JC	L.Knee	Pelvis
R.Shank	V_R.Knee_JC	V_R.Ankle_JC	R.Ankle	R.Thigh
L.Shank	V_L.Knee_JC	V_L.Ankle_JC	L.Ankle	L.Thigh
R.Foot	V_R.Ankle_JC	R.Toe	R.Ankle	R.Shank
L.Foot	V_L.Ankle_JC	L.Toe	L.Ankle	L.Shank
Trunk	V_Pelvis_Origin	V_Mid_Shoulder	R.Shoulder	Pelvis
Head/Neck	V_Mid_Shoulder	Top.Head	Front.Head	Trunk
R.UpperArm	R.Shoulder	R.Elbow	L.Shoulder	Trunk
L.UpperArm	L.Shoulder	L.Elbow	R.Shoulder	Trunk
R.Forearm	R.Elbow	R.Wrist	L.Elbow	R.UpperArm
L.Forearm	L.Elbow	L.Wrist	R.Elbow	L.UpperArm
R.Hand	R.Wrist	V_R.Hand	L.Wrist	R.Forearm
L.Hand	L.Wrist	V_L.Hand	R.Wrist	L.Forearm
PelvisWRTLab	V_Mid_Hip	V_Pelvis_Origin	V.Sacral	GLOBAL
TrunkWRTLab	V_Pelvis_Origin	V_Mid_Shoulder	R.Shoulder	GLOBAL
