Delsys

  1. Install the Delsys EMG management software trigno-discover_1-7-0
image (45)

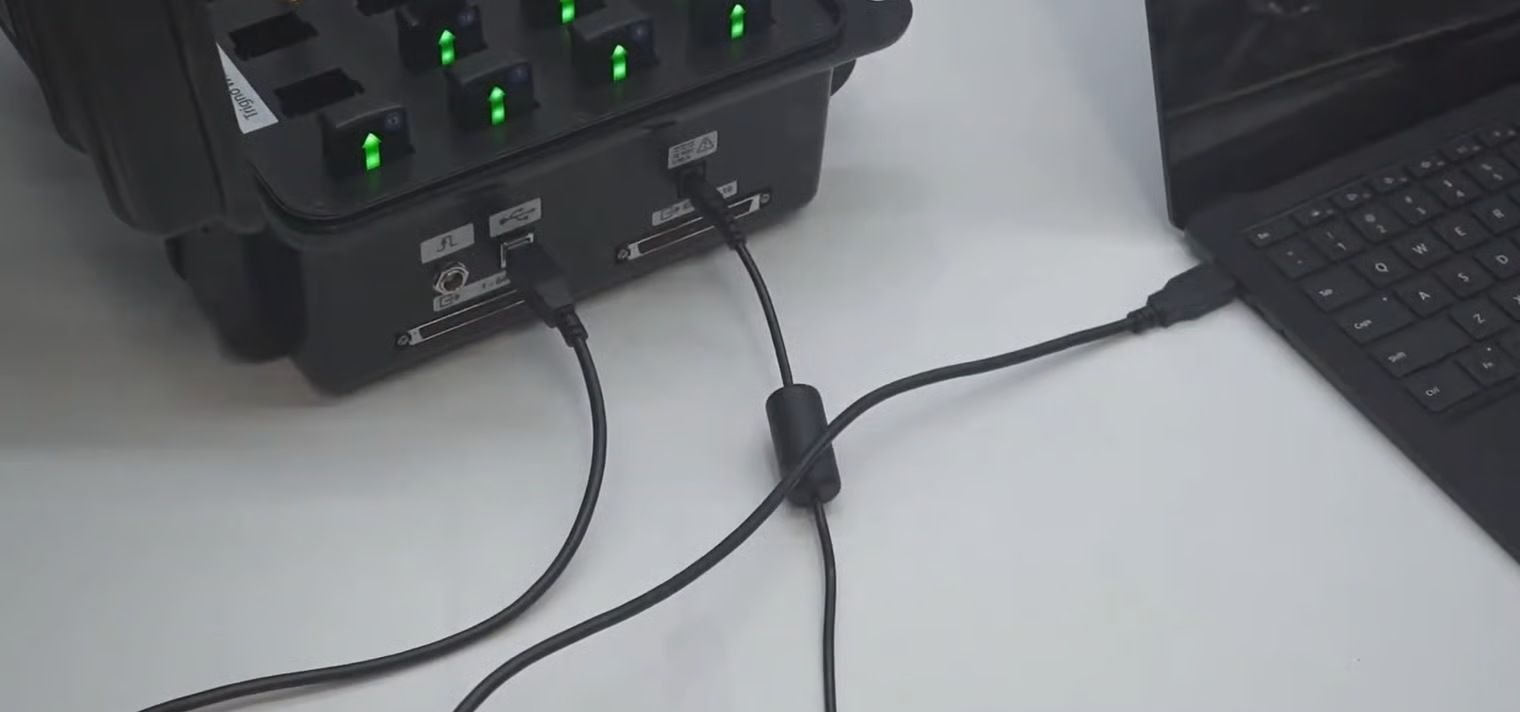

  1. Power on the device and connect the EMG device's USB cable to the computer's USB port.
image (46)
  1. Use Trigno Discover to connect to the EMG. After confirming that both the EMG device and sensors are functioning properly, close the Trigno Discover software.
image (49)

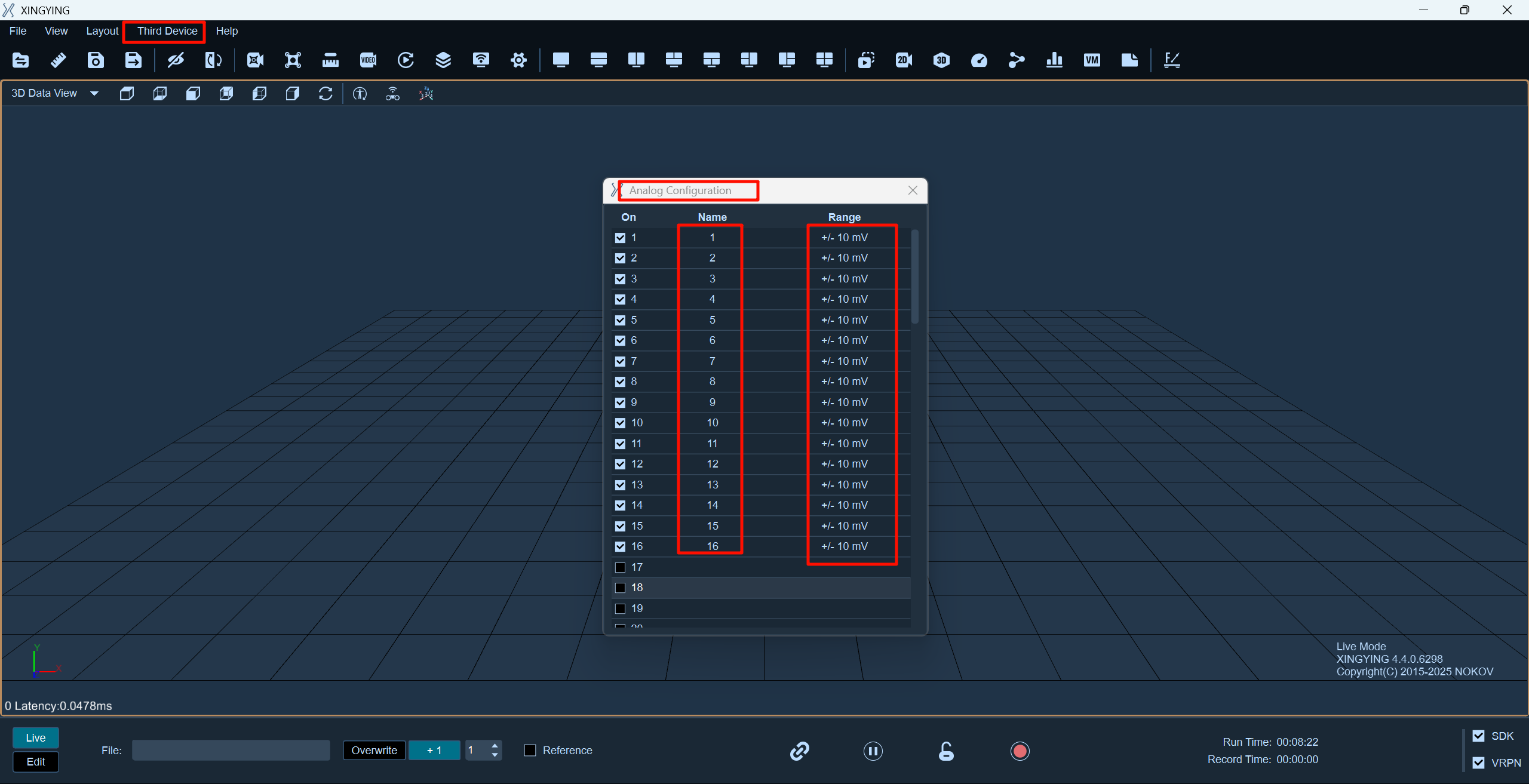

  1. Open the XINGYING software and click on "Third-Party Devices" – "Analog Configuration". Add channels according to the number of EMG sensors being used (the number of channels must correspond exactly to the number of sensors in use. If some sensors are no longer used, the corresponding channels must be deleted to ensure consistency between the number of active sensors and the number of channels). The EMG device range is typically configured to either 10 mV or 50 mV.
image (50)

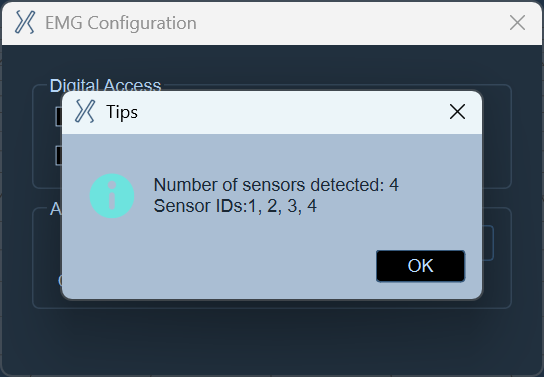

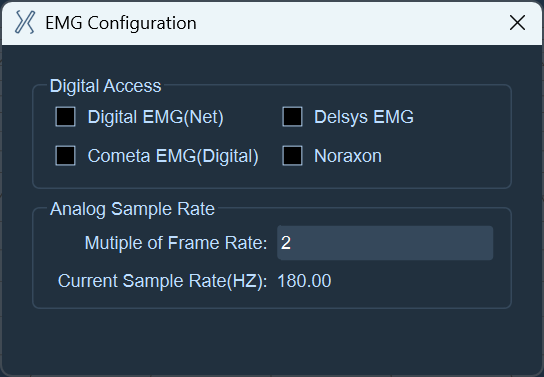

  1. Connect the EMG. Open the "Third-Party Devices – EMG Configuration" interface, set the Mutiple of Frame Rate, and check the option "Delsys EMG". The software will begin connecting to the EMG device. Once the connection is successful, a pop-up window will display the number and IDs of the connected sensors.
image (53)
image (54)

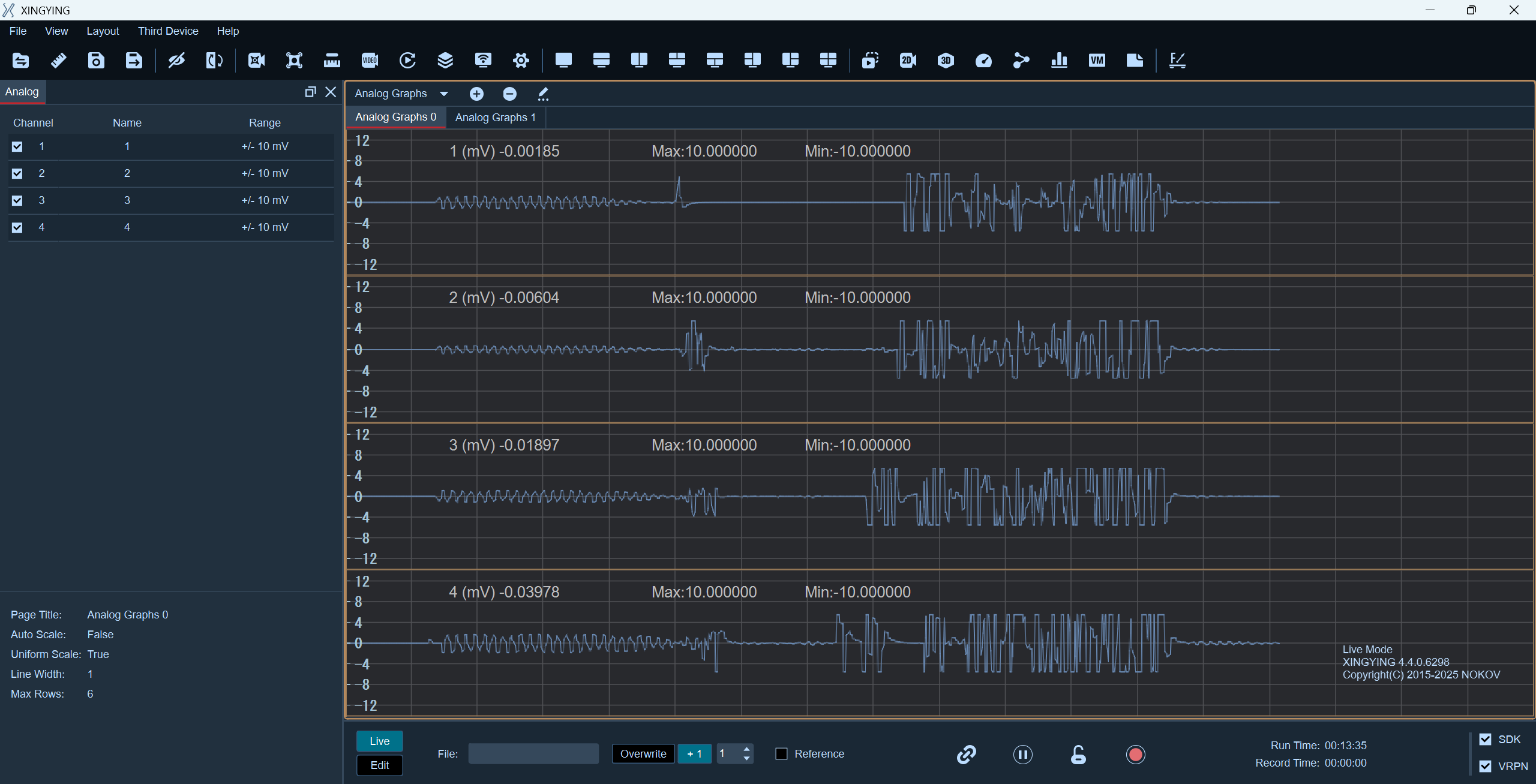

  1. Connect the cameras and start playback. Open the Analog Graphs, and you will be able to see that the EMG data is now being properly displayed in XINGYING.
image (55)
