Rui Dong

  • Power on the Reidong force measuring platform. Since the default IP network segment of the Reidong force measuring platform is inconsistent with that of the motion capture system, it is necessary to first modify the IP of the Reidong force measuring platform to the 10.1.1.X network segment;
  • For the IP setting method of the Rui Dong force plate, please contact the manufacturer. If the user chooses not to use the IP address of 10.1.1.X, then use a dual - network - card host and ensure that the IP of the force plate is correctly configured.

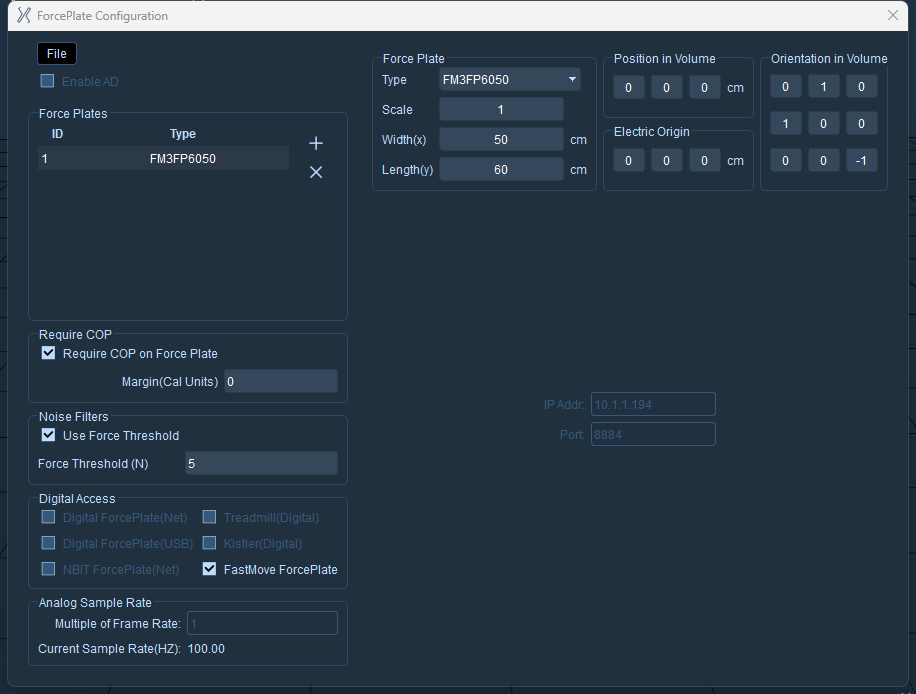

  • After setting the IP address of the force platform, you can enter the set IP address in the command prompt to check if it can be pinged. Once the communication is normal, you can configure the relevant parameters of the force platform in the motion capture software. Open XINGYING, click on third-party devices, select "Force Platform Configuration", click the "+" sign to add a force platform, select the added force platform and switch it to the Reidong type, then configure various parameters of the force platform on the right side.
  • In the "IP Address" input box, please enter the IP address of the force plate you set. For example, if the IP address of your Rui Dong force plate is 10.1.1.194, then enter 10.1.1.194 in the IP address field. Enter the corresponding port number in the "Port" field. For example, if the IP address of your Rui Dong force plate is 10.1.1.19X, then its port number is 888X. After that, in the "Other Configurations" of the force plate parameter setting window, check the box for "Rui Dong Force Plate (Network)".
  • When there are multiple Rui Dong force plates, please repeat steps 1 to 5 above for configuration. At the same time, correctly set the center of the force plate according to the actual placement position of the force plate.
  • After all parameters are configured, close the settings window, and we can see that the force plate has been added to the coordinate system.
