Hand+Glove,RHand

Model Creation

  1. For the supported data glove brands and their usage methods, please read "XVI. Third-Party Device Access --- Inertial Gloves";
  2. According to the brand of the data glove you are connecting, please read "XVI. Third-Party Device Access --- Inertial Gloves --- Glove Management" to add and configure the gloves;
  3. After the glove addition and configuration are completed, you can place the markers according to the of marker placement on the human body template, and you need to avoid similar marker positions.
  4. After putting on both pairs of gloves, stretch your arms straight in a T-Pose, click on Freeze Frame, frame the points of the left and right hands, right-click on the 3D view, and select "Create Human Body";

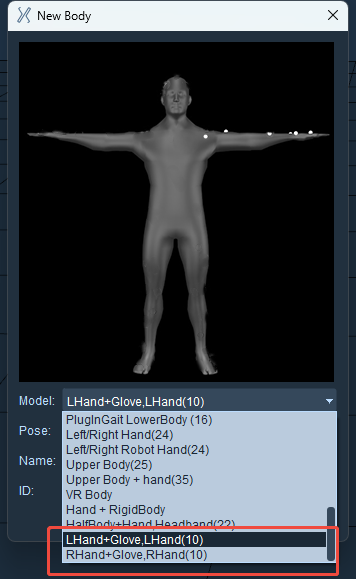

    • In the human body creation window, expand the model dropdown list and select the "RHand+Glove,RHand" model (select according to the actual box-selected points)
    • Enter a name or keep the default name
    • Select glove number
    • Click the Create button
企业微信截图_17562803007905

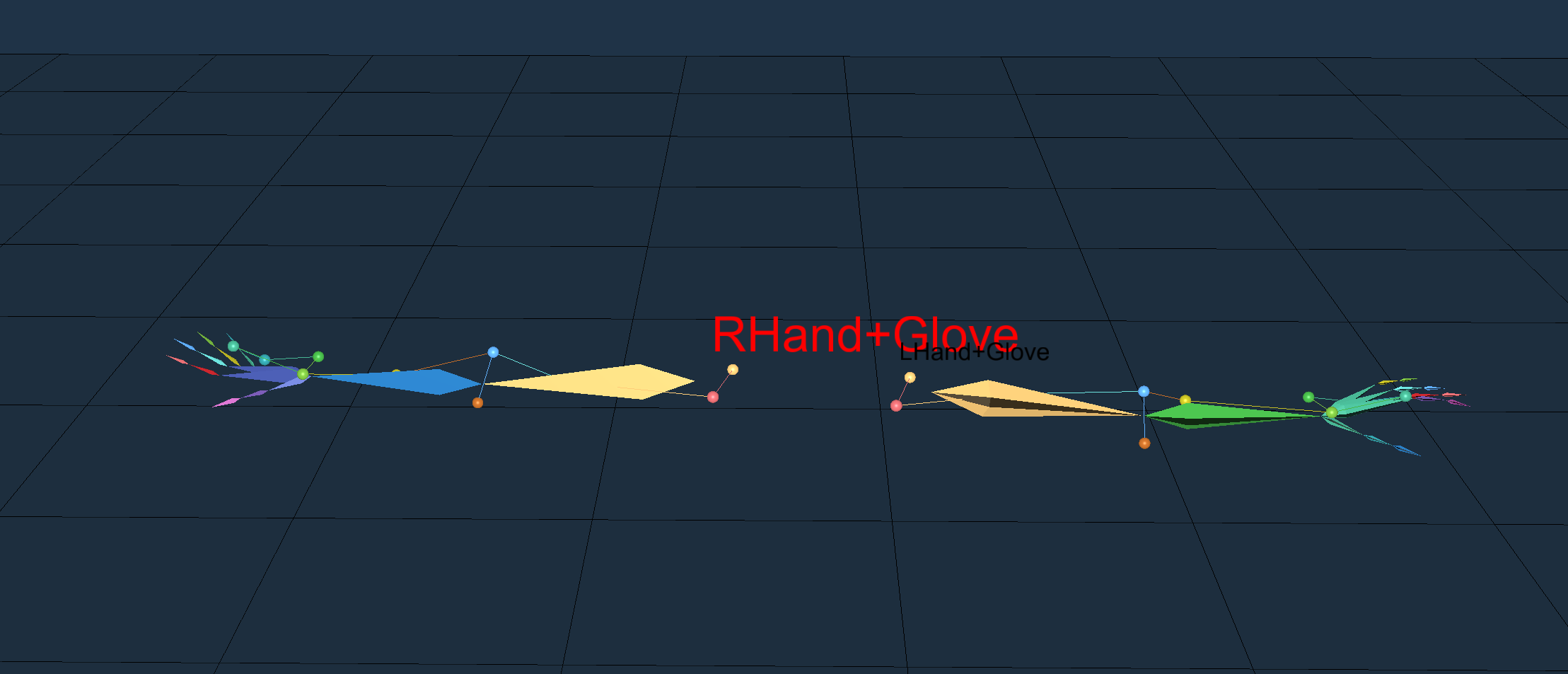

  • Unfreeze, and now you can move freely.
企业微信截图_17562756472259
