Noraxon

Noraxon Electromyography (EMG) Usage Instructions

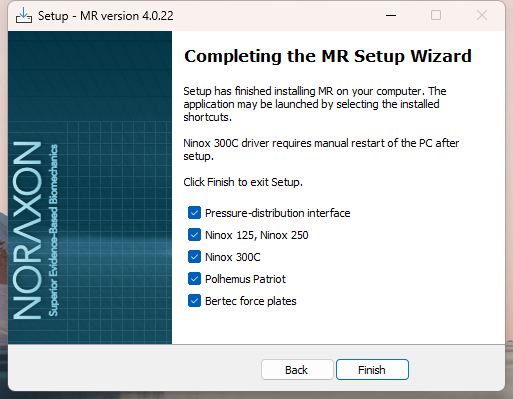

1. Install the Noraxon software and the Noraxon Acquire SDK.

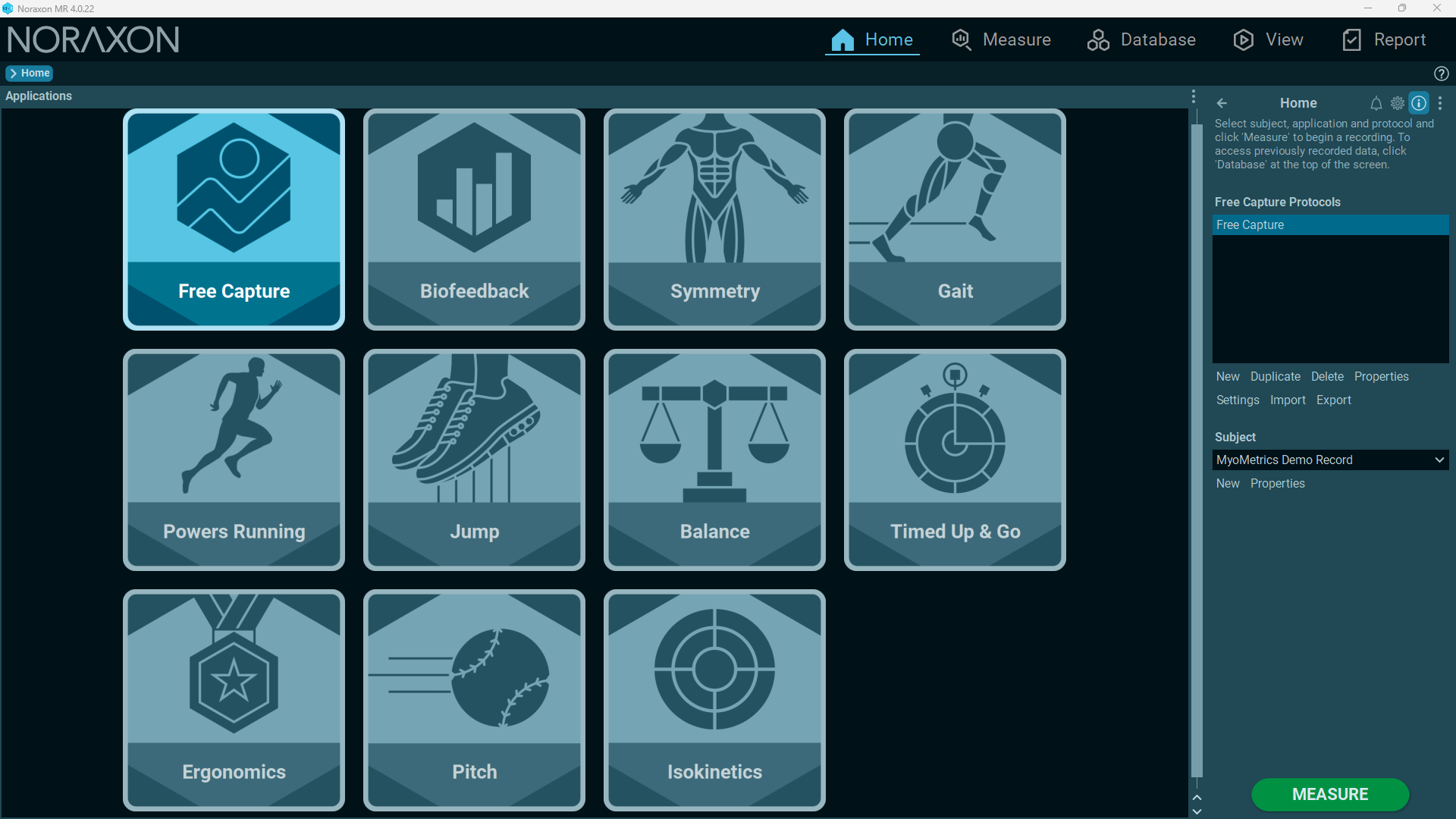

2. Open the Noraxon software.

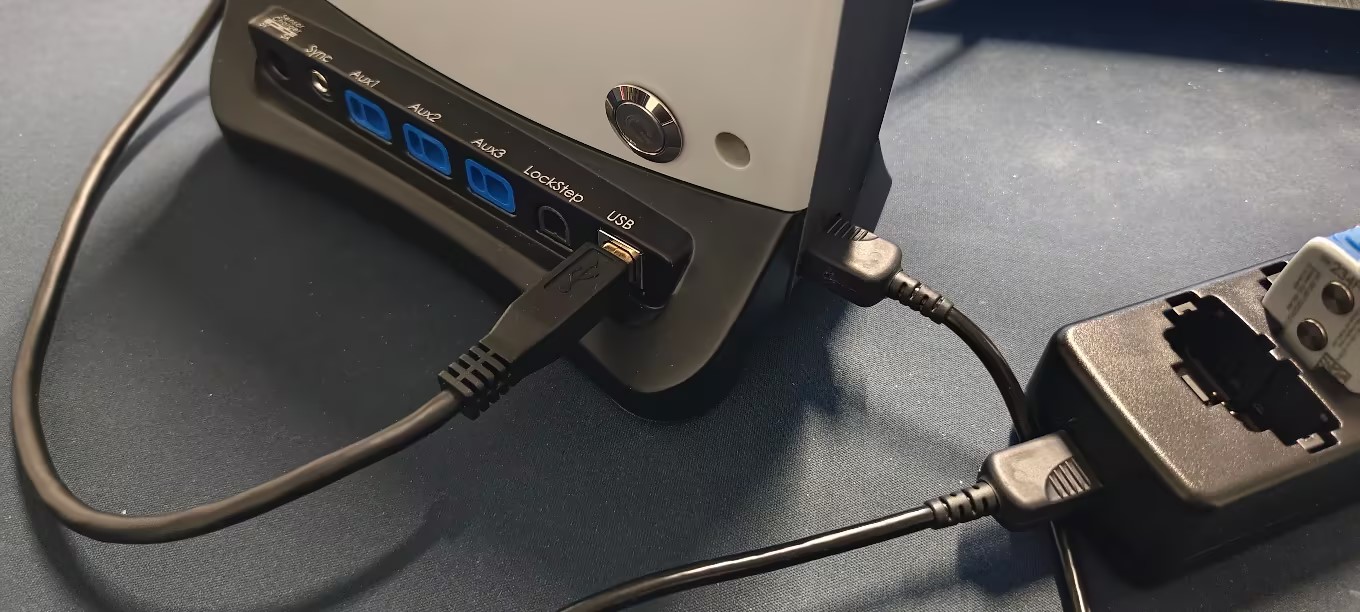

3. Connect the USB cable to the computer.

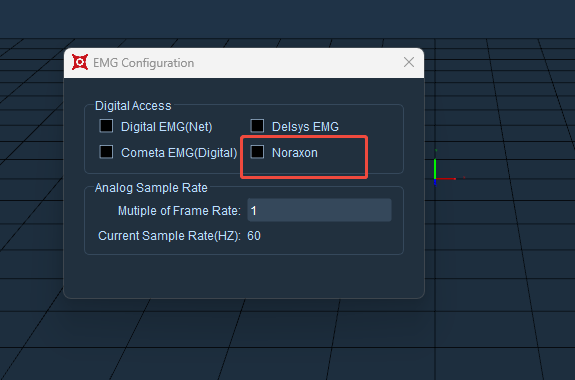

4. Open the XINGYING software, click on "Third-Party Devices", select "Channel Configuration", configure the Noraxon EMG channels, select the EMG configuration option, and check the box for Noraxon.

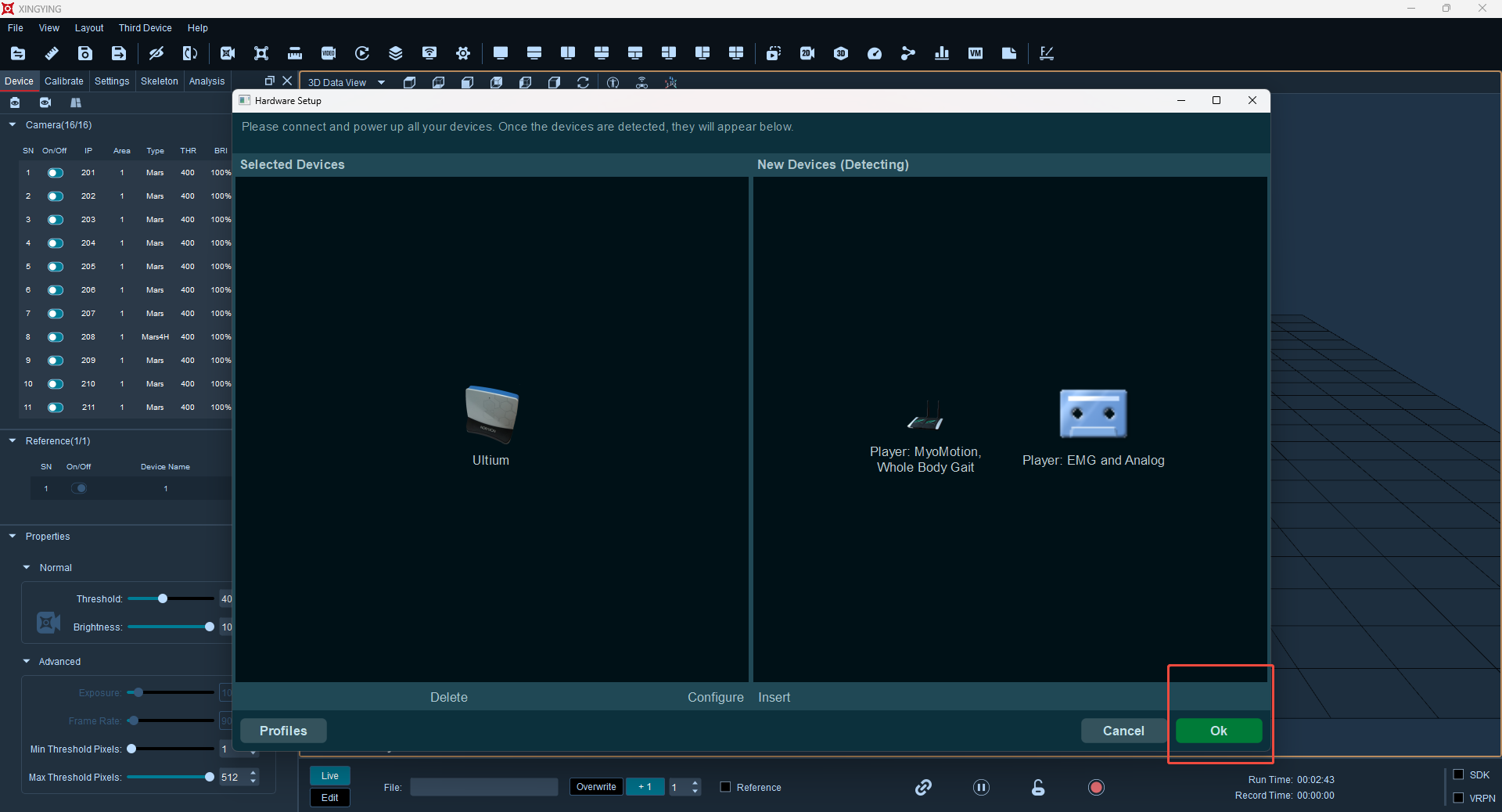

5. Select the connected device (Ultium), then click "OK". The software will display that the hardware is being activated. Please wait a moment.

6. Play the software, open the simulation chart, select all channels, and enable the auto-adaptation function.
