Baseline+Toe,Headband + 5Finger(63)

63-Point Human Body Model

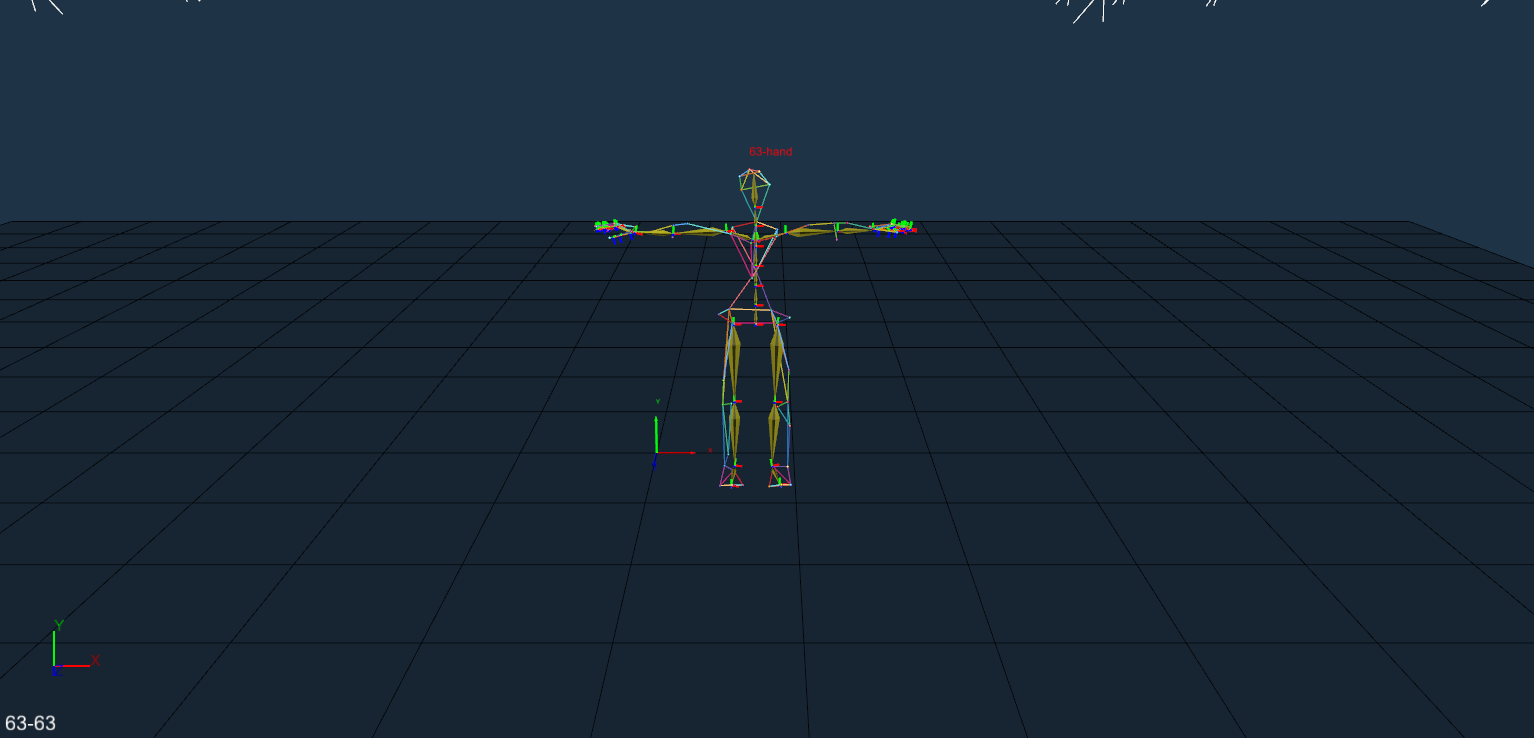

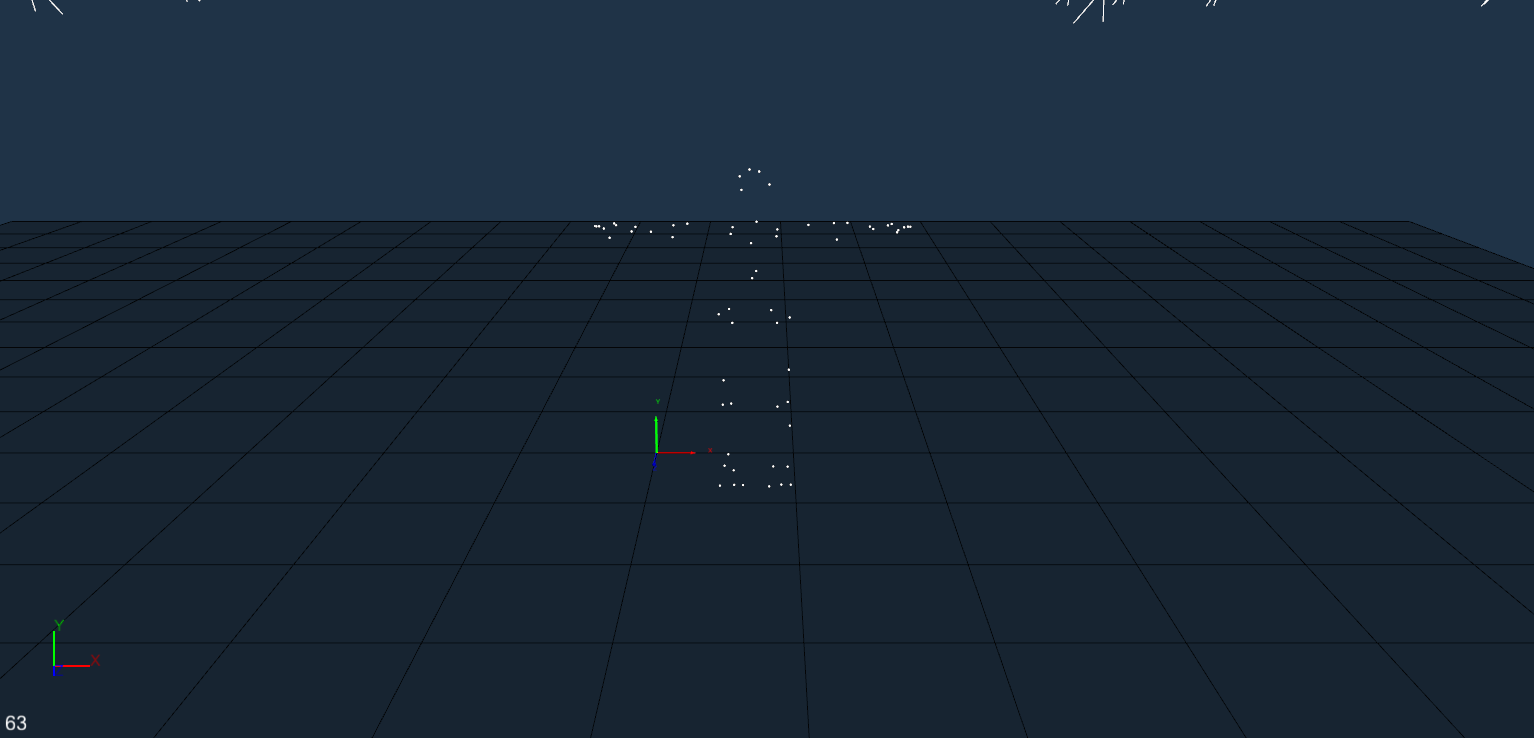

  1. Create a 63-point human body template in real-time mode. The model should have retro-reflective markers attached to their body, with markers placed at each joint of the fingers (9.2.25). In the 3D view, each retro-reflective marker should be visible, and there should be no points within the field. When creating the fingers, ensure that the total number of retro-reflective markers is displayed by the number in the lower left corner of the 3D view (9.2.26).
9.2.25

9.2.25

9.2.26

9.2.26

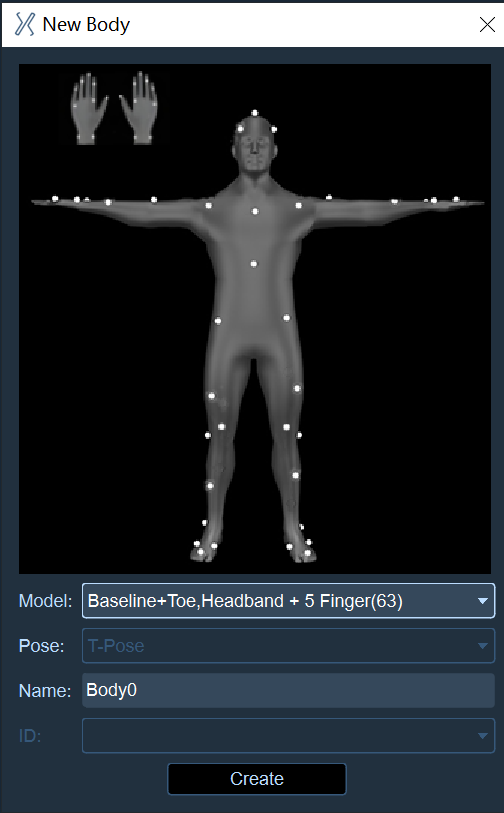

  1. Ensure that the software is in play mode, click on the "Freeze" button to freeze the 3D view. Once successfully frozen, the button will display "Unfreeze". The model should stand in a T-pose, with the calibration file set for Y-axis up, facing the positive Z-axis direction, arms parallel to the X-axis. Click on freeze frame, then right-click on the mouse in the 3D interface and select "Create Human Body". In the "Create Human Body" window, choose "Baseline+Toe,Headband+5 Finger(63)" from the dropdown menu and click OK(9.2.27).
9.2.27

9.2.27
