Helenhayes Body

1. XINGYING can create three types of Helen Hayes mannequins in Live mode: Helen Hayes FullBodyWithHead (29 Static), Helen Hayes FullBody (26 Static), and Helen Hayes LowerBody (19 Static). When pasting points, double-sided adhesive can be used to stick the marker points directly to the skin. The specific placement of the points can be referred to the sticker icon in the Create Human Window. If you have any questions or issues with the sticker points, please contact the technical engineer.

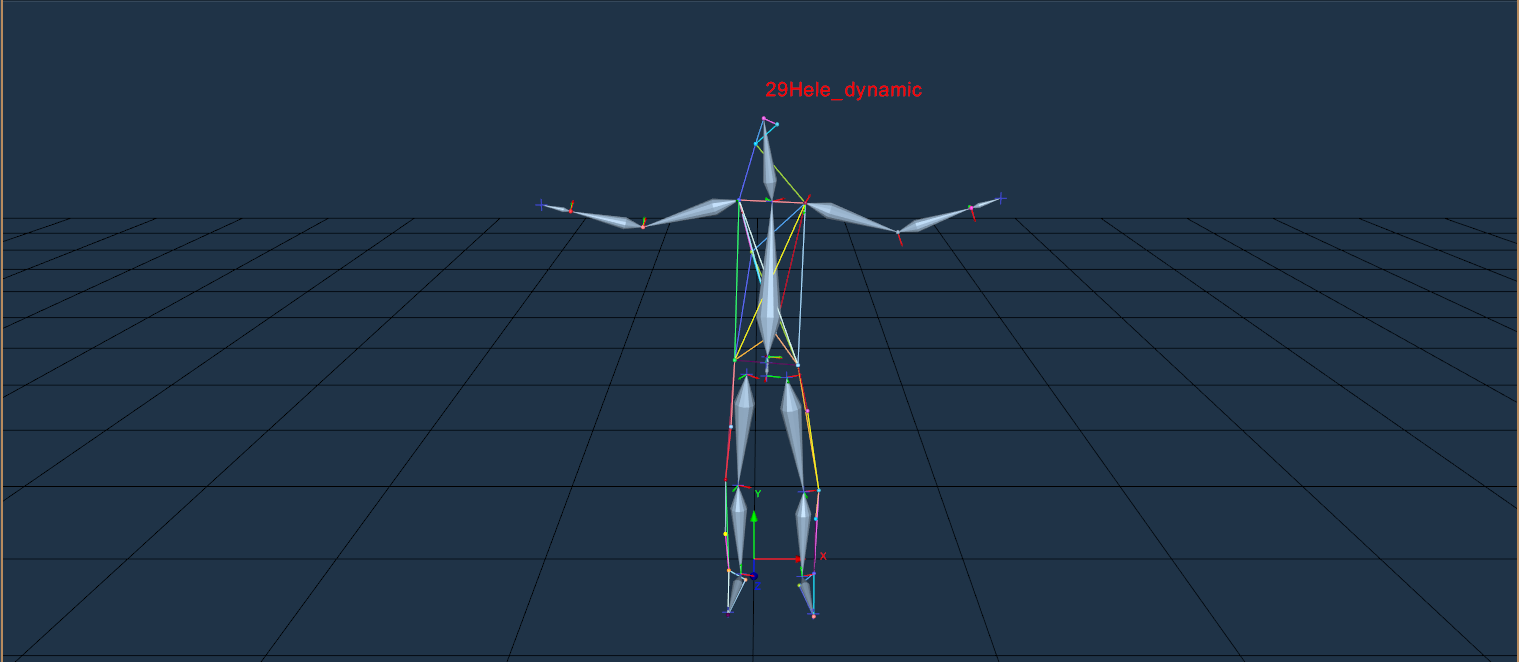

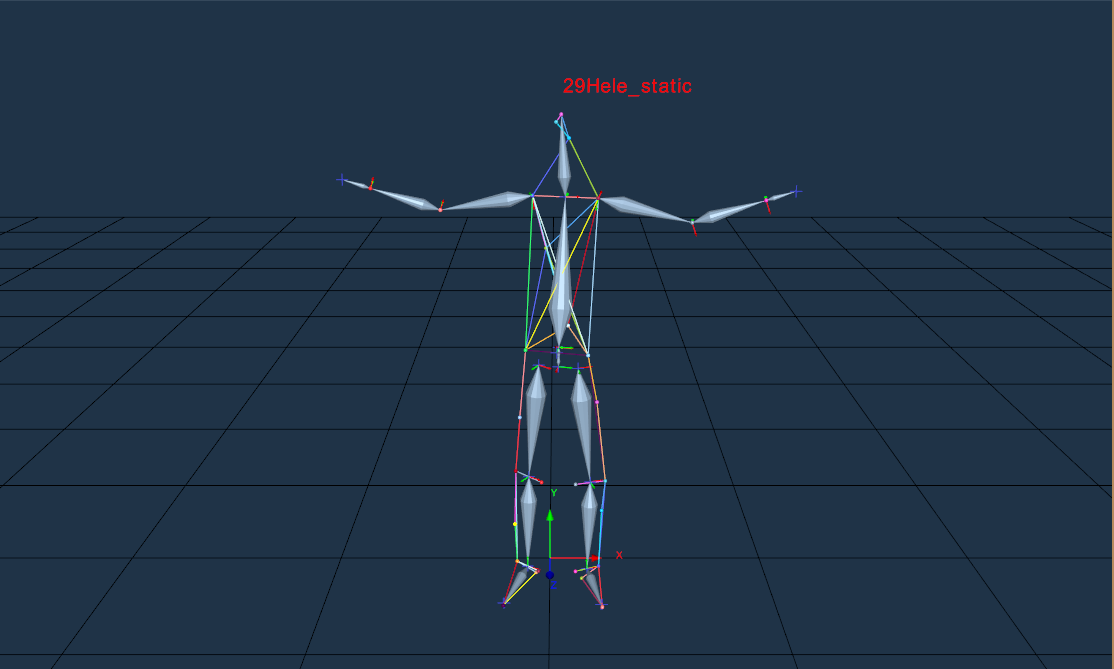

2. After creating the Helen Hayes model, the software will automatically generate both a static and a dynamic Helen Hayes model. Be sure to distinguish between the static and dynamic models. The default naming rule for the static model software is "body name+_static", while the naming rule for the dynamic model is "body name+_dynamic". To switch from a static to a dynamic model, remove the two Marker points on the inner ankle and the two Marker points on the inner knee of the model. Then, use the "Add/Remove" button in the software to remove the static model file and recognize the dynamic Helen Hayes model. 3.**Helen Hayes FullBodyWithHead (29 Static):**This model uses 29 markers for a full-body static Helen Hayes model. With the Marker points attached to the corresponding positions on the body, the model should stand in a T-pose. If the calibration file has the Y-axis up, face the Z-axis. If the Z-axis is up, face the negative Y-axis direction. The arms should be parallel to the X-axis, and the arm position should not be lower than the two Marker points on the front waist. Click "Freeze, " right-click on the 3D interface, and select "Create Body". Choose "Helen Hayes FullBodyWithHead (29 Static)" from the dropdown menu in the "Model Creation" window. Place the mouse cursor on the sticker image, scroll the mouse wheel, and view the sticker positions from different angles. After confirming that the actual stickers match the sticker image, click "Create" to generate the 29-point static and dynamic Helen Hayes models (9.2.7, 9.2.8).

9.2.7

9.2.8

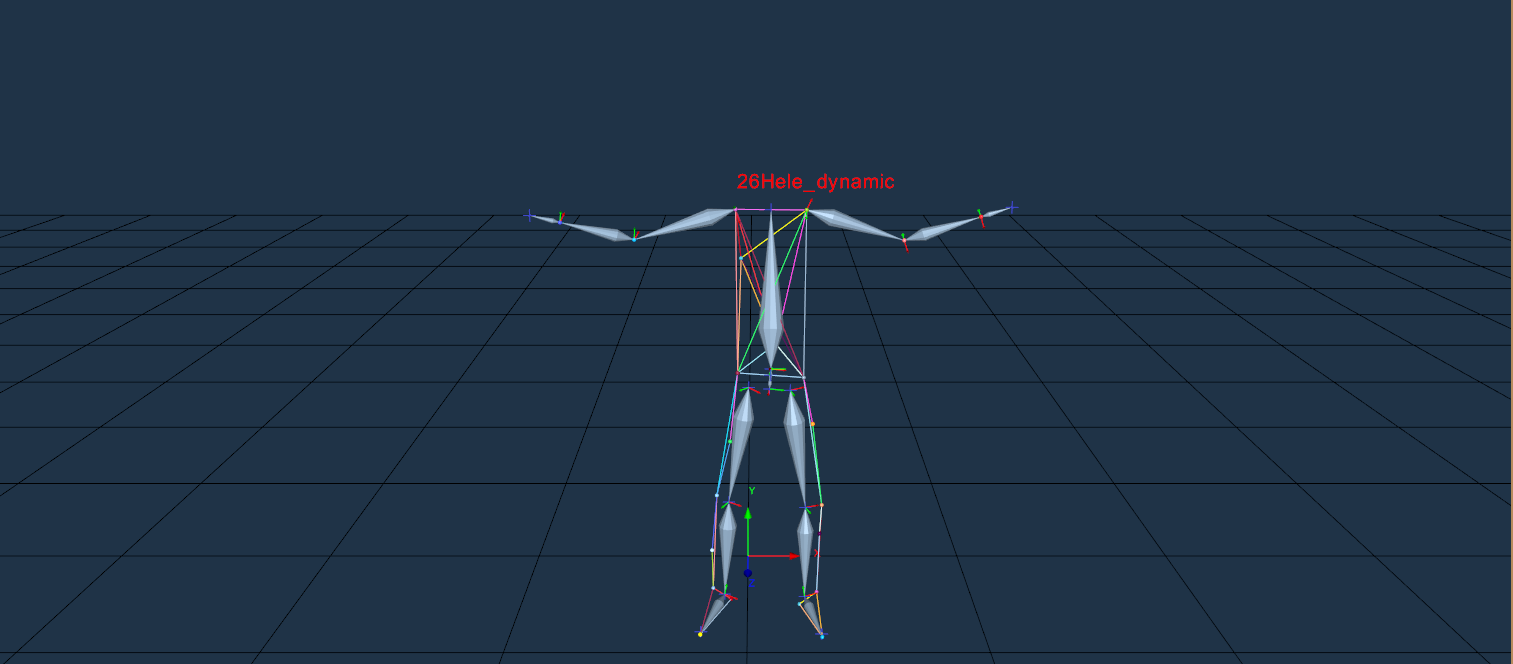

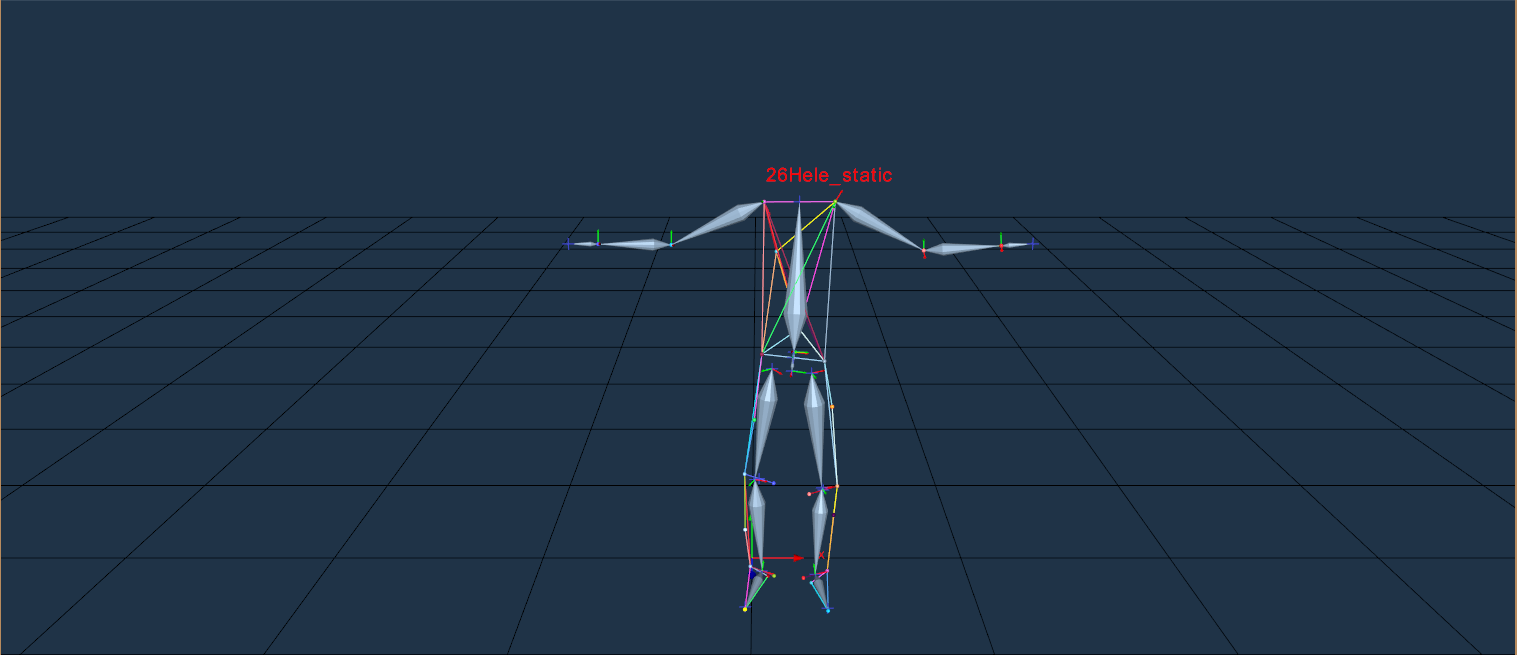

3. Helenhayes FullBodyWithHead (26 Static): The 26-point static Helen Hayes model removes three marker points from the head compared to the 29-point model. The remaining positions are aligned with the points on the 29-point Helen Hayes model. In the dropdown box of the "Model Creation" window, select "Helenhayes FullBody (26 Static)". 26 point static and dynamic Helen Hayes model (9.2.9, 9.2.10).

9.2.9

9.2.10

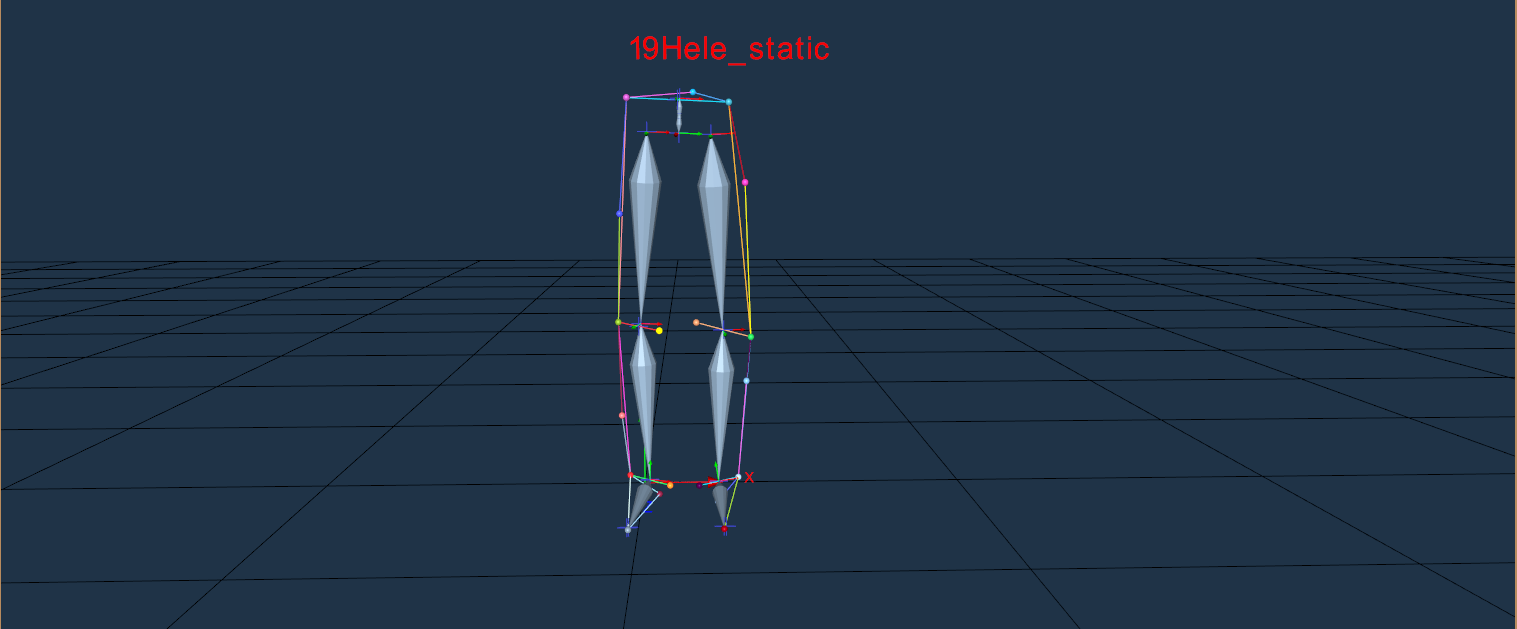

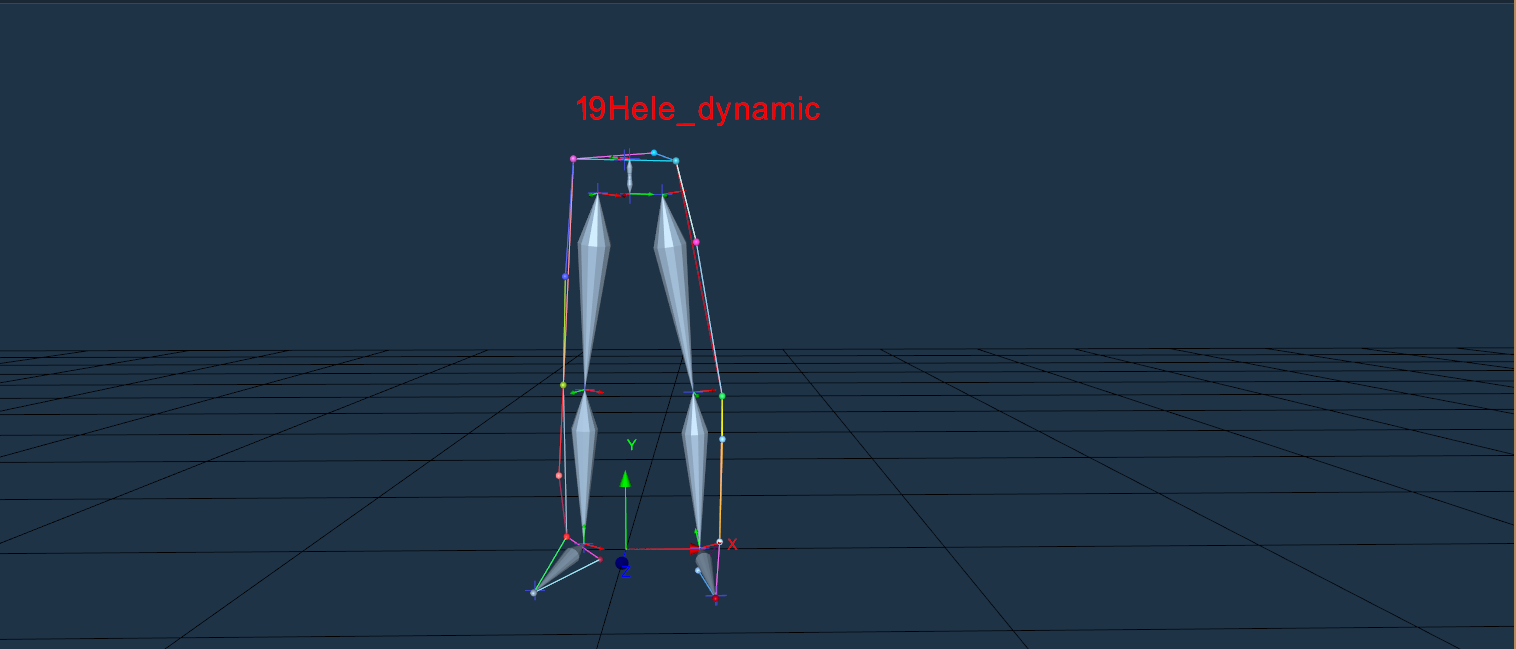

4. Helen Hayes LowerBody (19 Static): Compared to the 29 points model, the 19 points model removes all the Marker points in the upper body (except for the three points on the waist), and the other positions are consistent with the attachment points of the 29 point Helen Hayes model. In the dropdown box of the "Model Creation" window, select "Helen Hayes LowerBody (19 Static)". 19 point static and dynamic Helen Hayes model (9.2.11, 9.2.12).

9.2.11

9.2.12

5. If the arm cannot bend and extend normally or the thigh cannot stand normally when creating a Helen Hayes model in Live mode, we suggest using a custom Helen Hayes template for editing. Please consult our engineer to obtain a Helen Hayes human body template.
