Left\Right Hand(24)

24 Markers Model for the Left\Right Hand:

1. Create a finger template in real-time mode. The model needs to have reflective marker points attached to them at different joints (9.2.20). Attach reflective markers to the finger joints and make sure they are visible in the 3D view without any obstructions. Confirm the total count of reflective marker points in the 3D view at the bottom left corner (9.2.21);

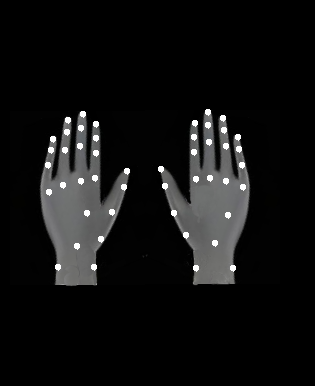

9.2.20

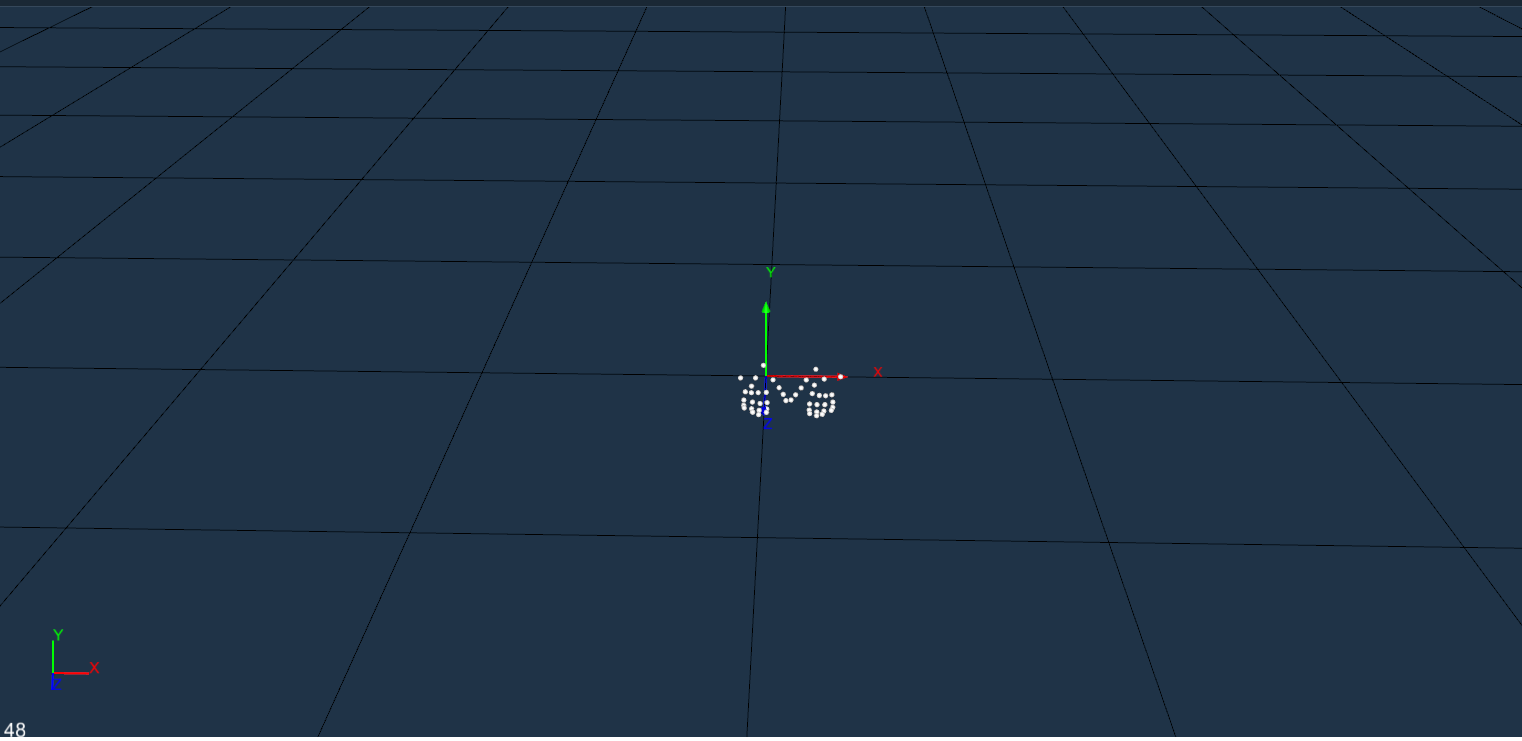

9.2.21

1. Ensure the software is in playback mode, then click on the "Freeze" button to freeze the 3D view. Once successfully frozen, the button will change to "Unfreeze." Ensure both hands are placed flat with the calibration file setting Y-axis upwards and fingers pointing towards the positive Z-axis (fingers towards Y-axis when Z-axis is pointing upwards). Click on Freeze Frame, and in the 3D interface, right-click to select "Create Human Body." In the "Create Human Body" window, choose "Left\Right Hand(24)" from the dropdown menu.
