User Guide

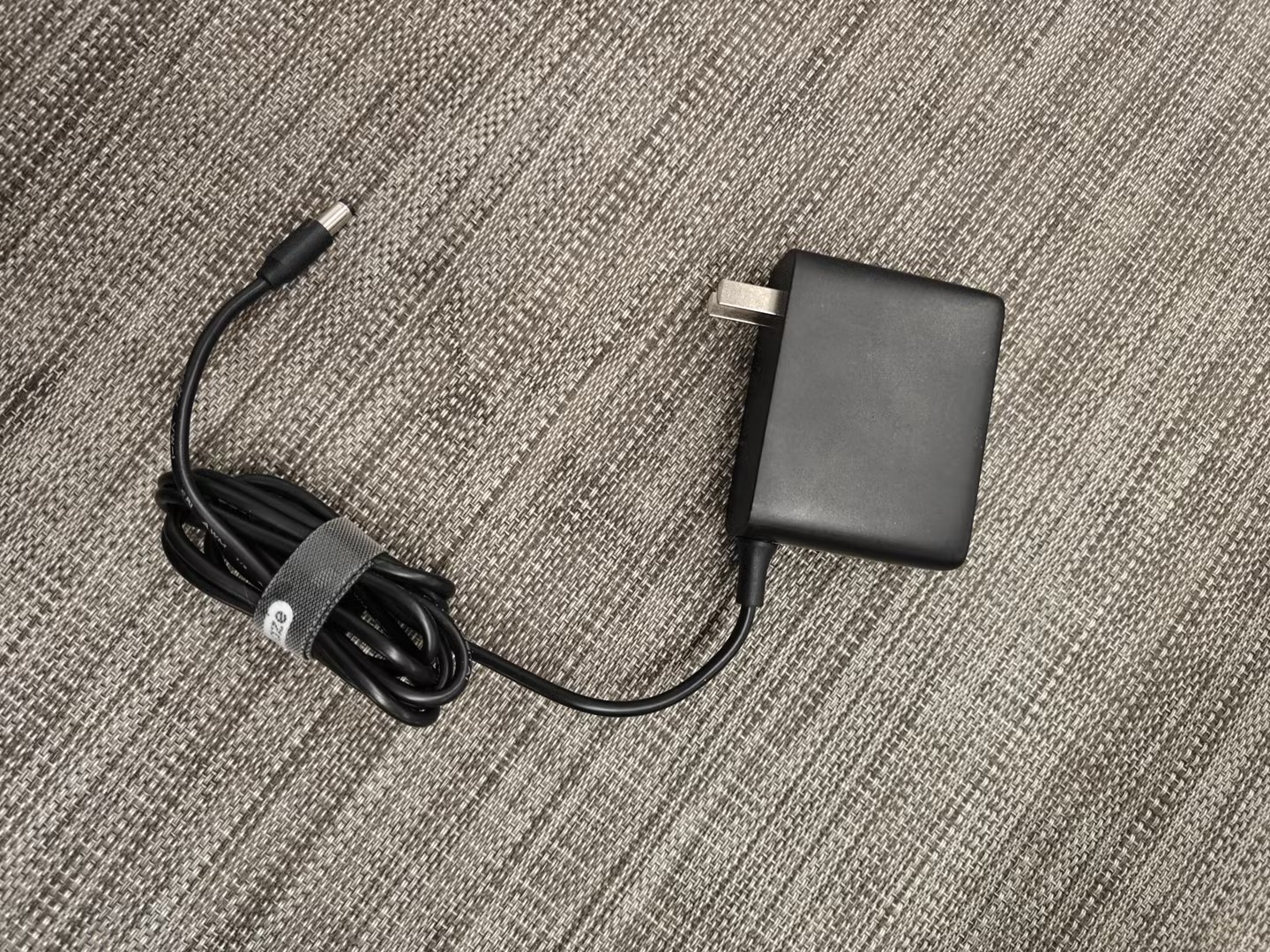

1.Power on the Cameras and connect it to the computer:Connect the supplied 12V power adapter (20.1.2) to the Cameras power port, and use an Ethernet cable to connect the Cameras to the computer’s network interface card (NIC) (refer to Sections 1–5 of Chapter 3 for the computer settings) (20.1.1).
20.1.1
20.1.2

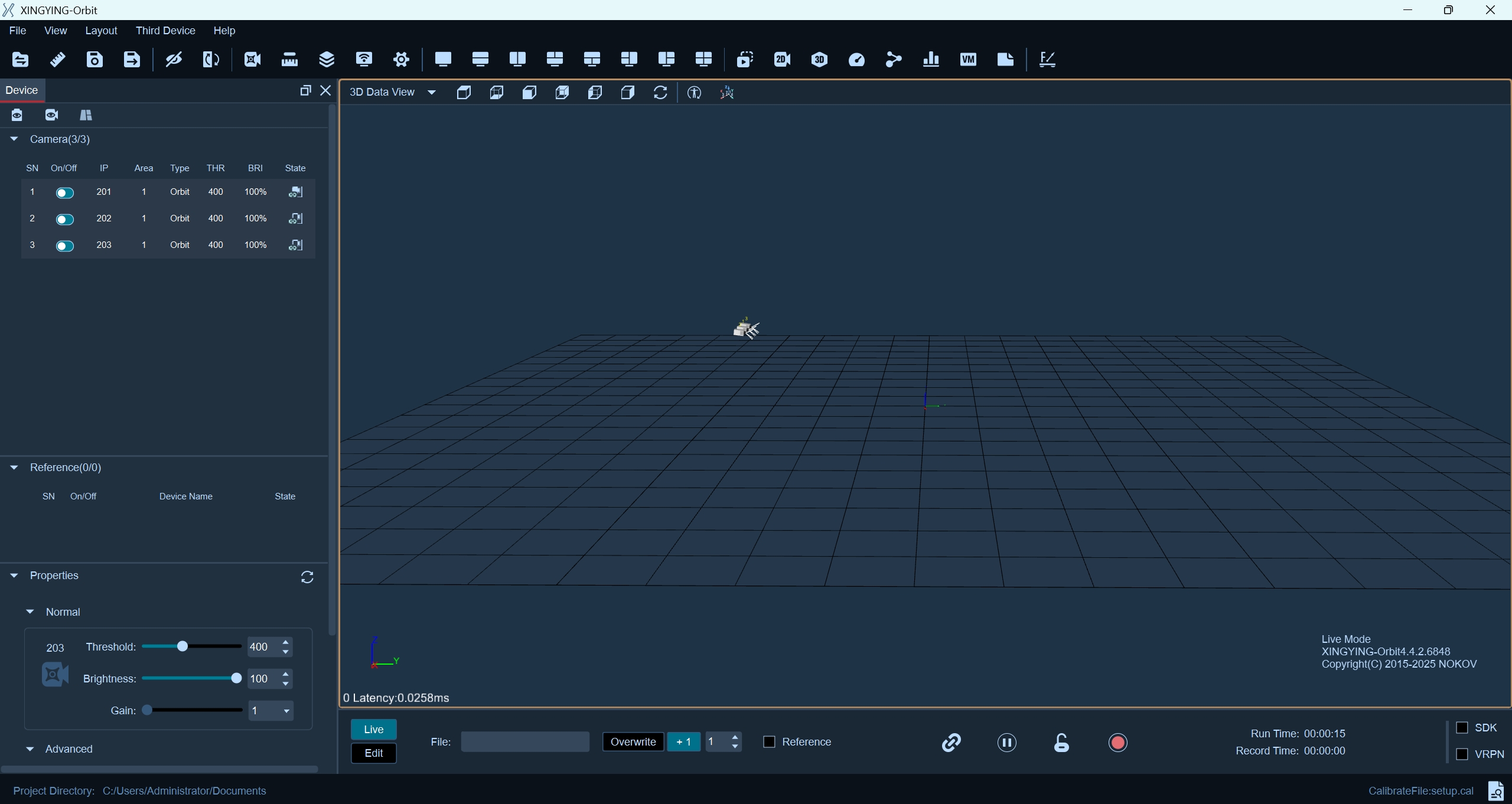

2.Launch the Orbit Cameras XingYing software and click Connect Cameras. After a successful connection, the interface will appear as shown in Fig. 20.1.3. The three Camerases with IP addresses 201, 202, and 203 will be displayed, and the calibration files will be loaded automatically.
20.1.3

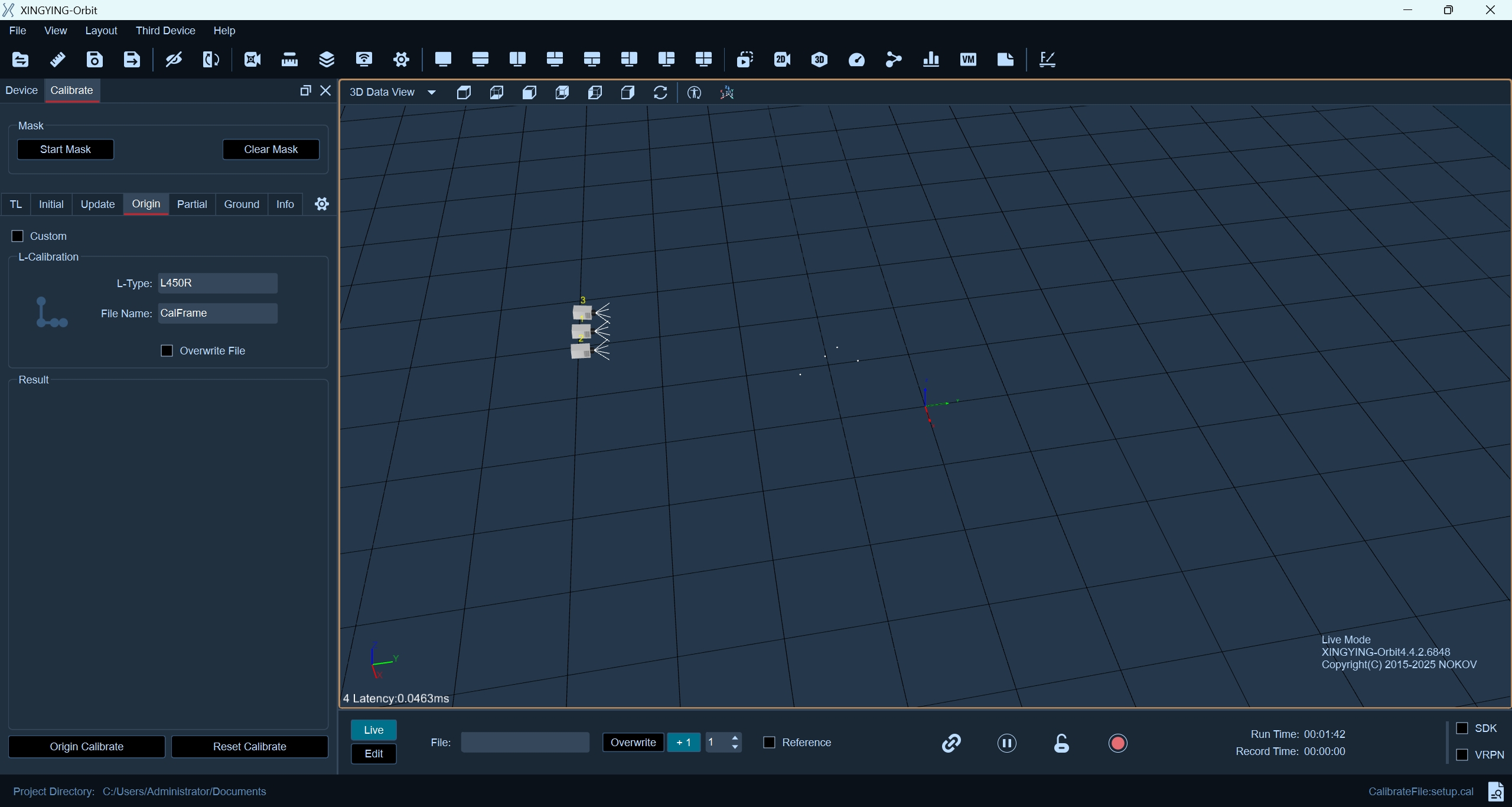

3.Origin Calibration:Place an L-Type rod in front of the Cameras. Open the Calibration → Origin Calibration interface. When there are only four L-Type rod points visible in the 3D view, click L Calibration.
20.1.4

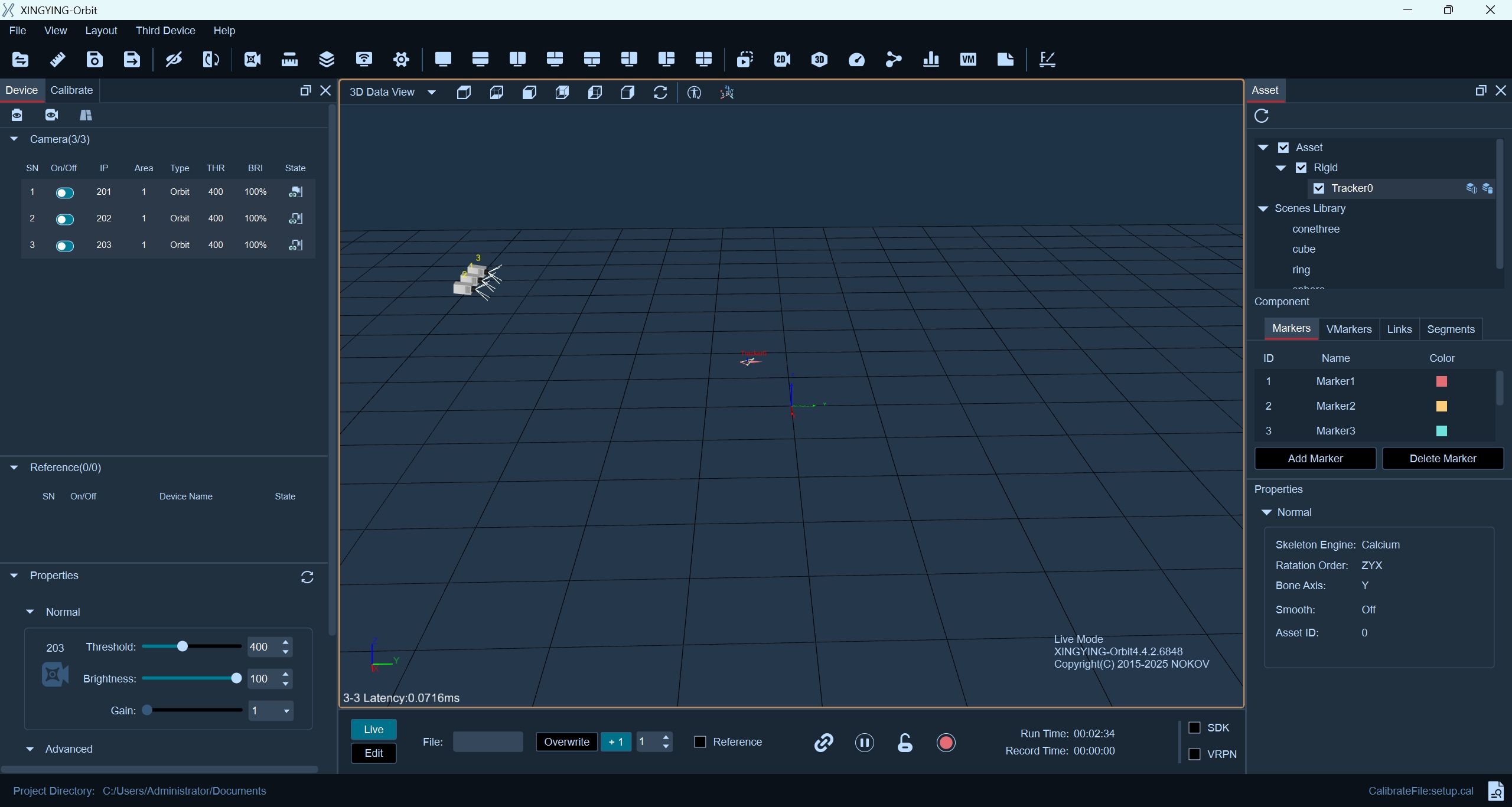

4.Create an asset and start normal use.
20.1.5
Note:
If you are using the Orbit Cameras, please use the XingYing-Orbit version of the software. If you encounter any issues, contact a Nokov Engineer for assistance.
The Orbit Cameras supports plug-and-play operation and does not require calibration. If multiple Orbit Camerases are used together, the Cameras IP addresses must be modified. Please contact a Nokov Engineer for assistance.
