14.IOR Marker Placement Instructions

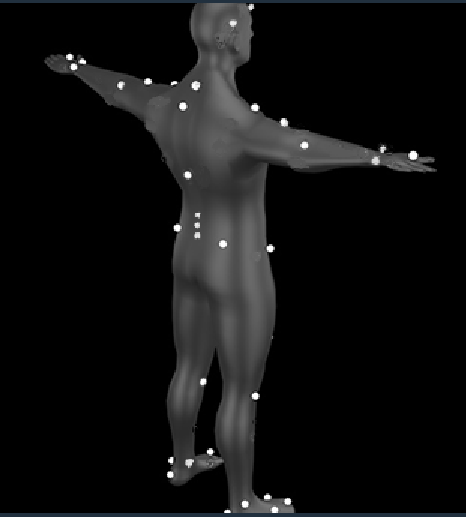

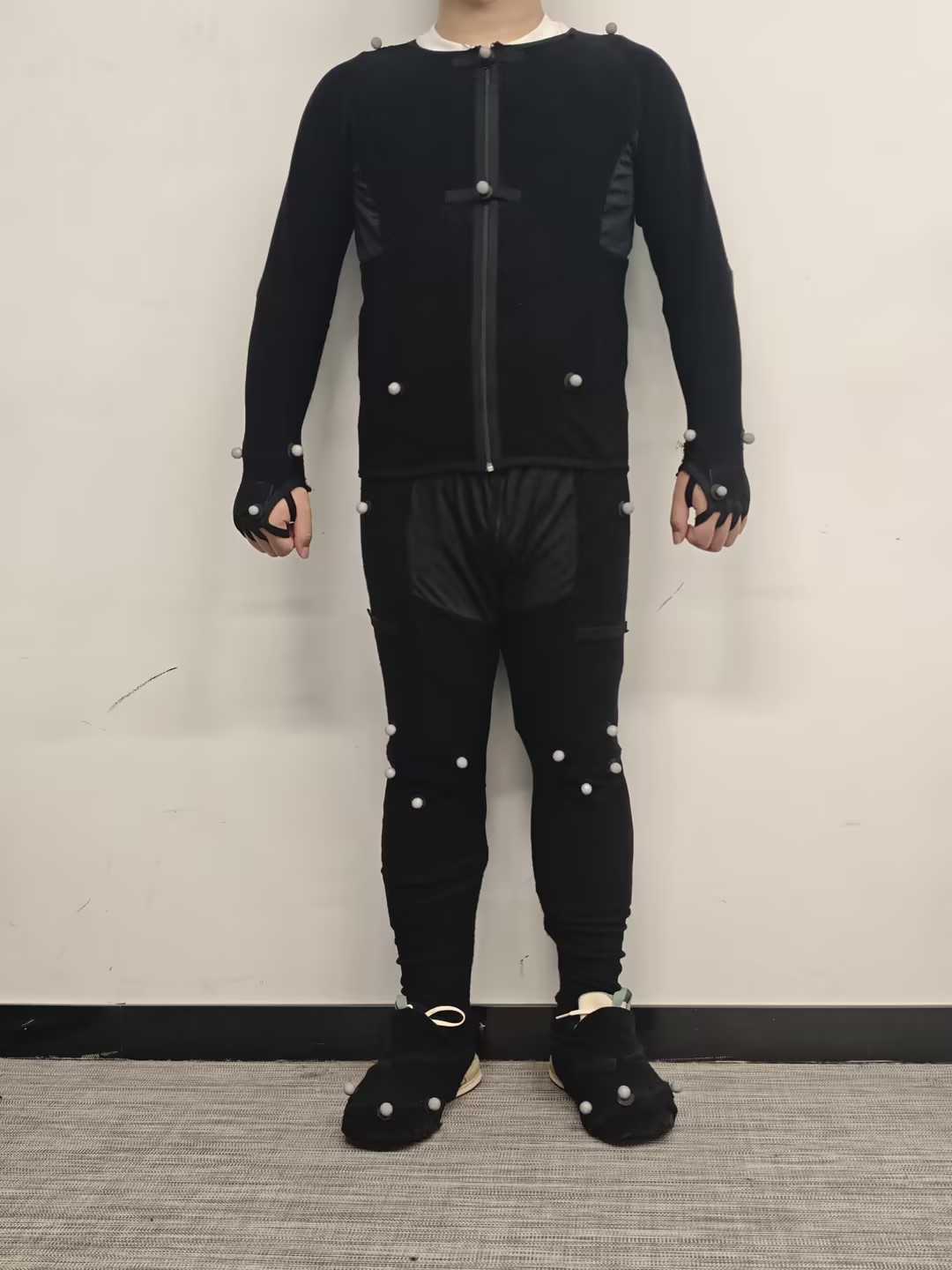

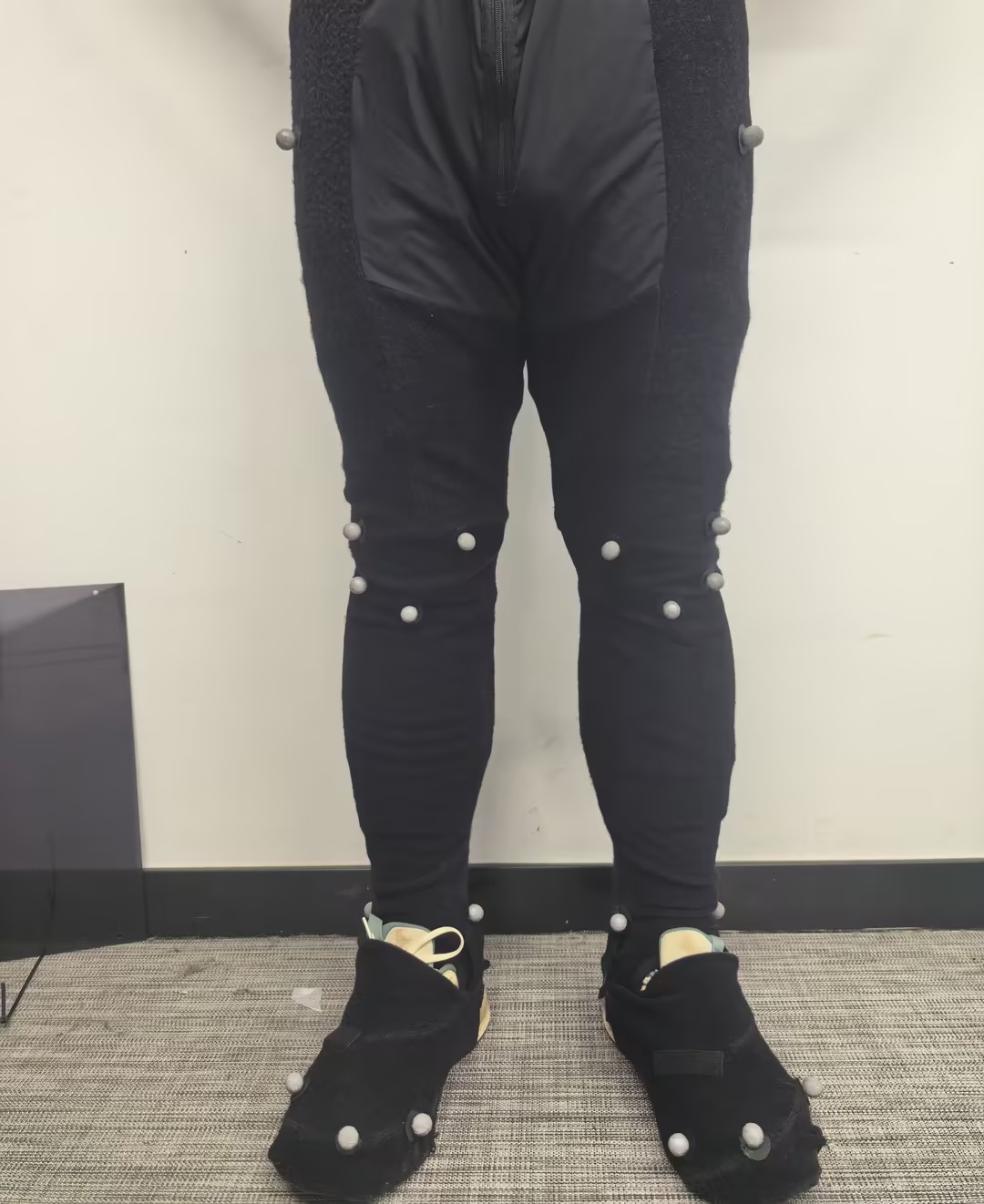

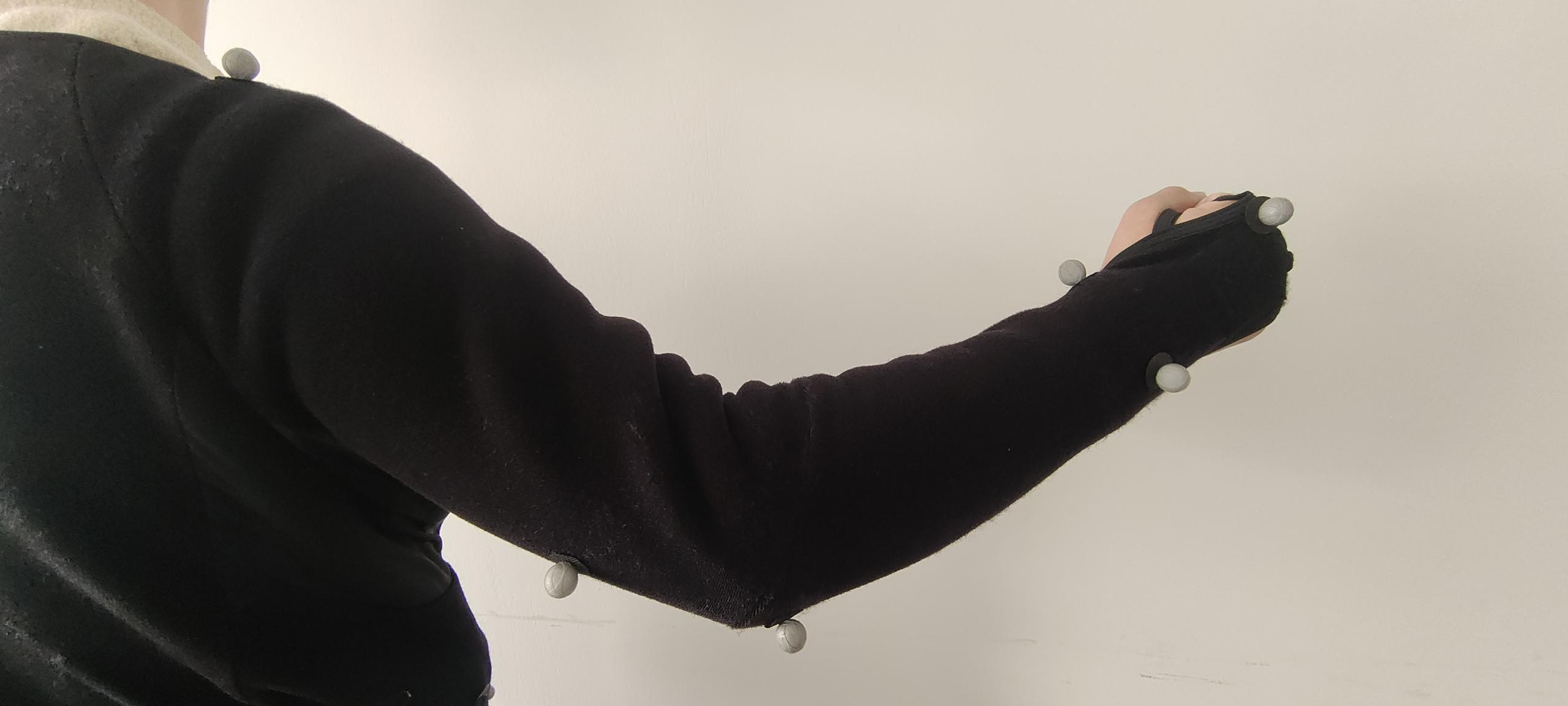

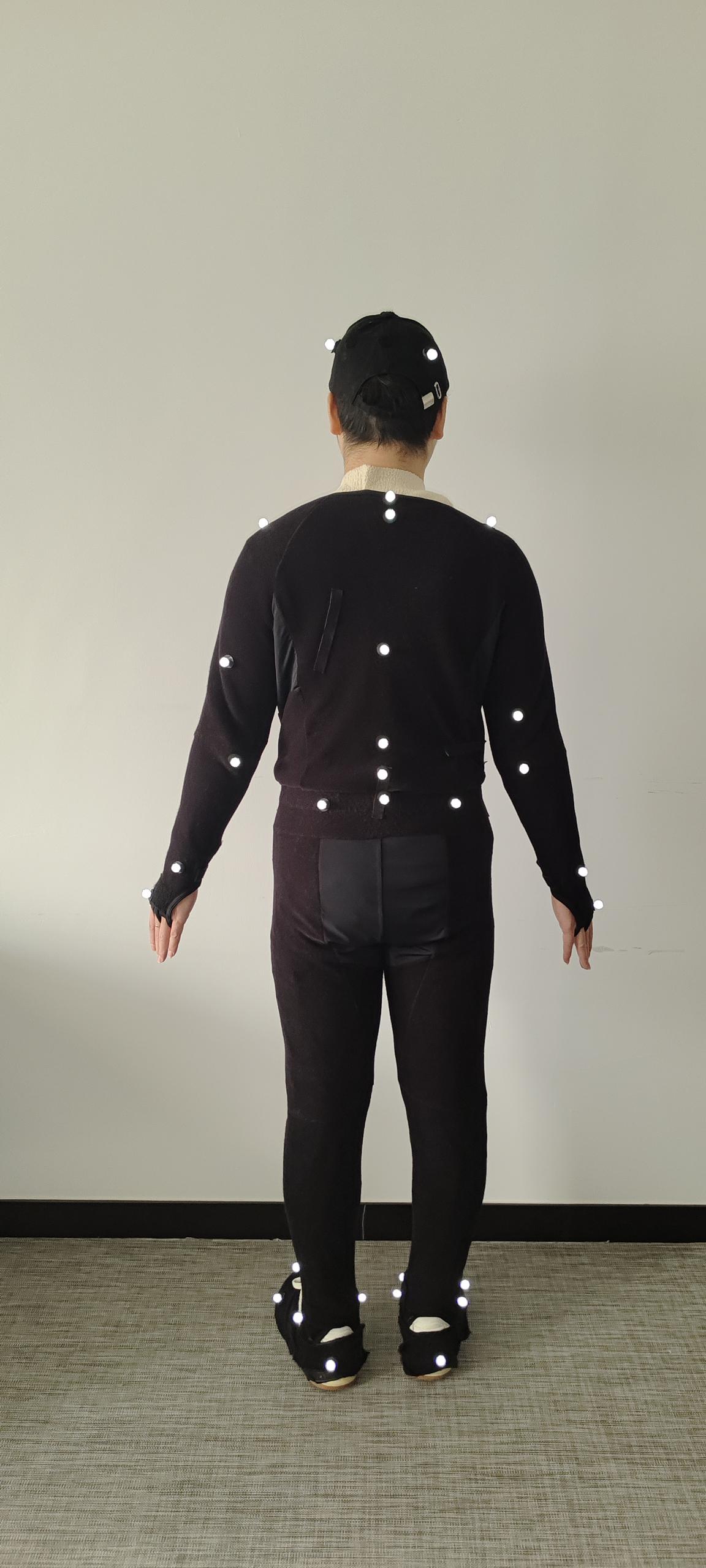

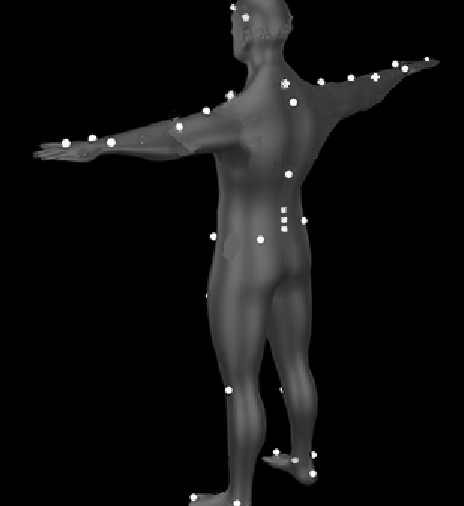

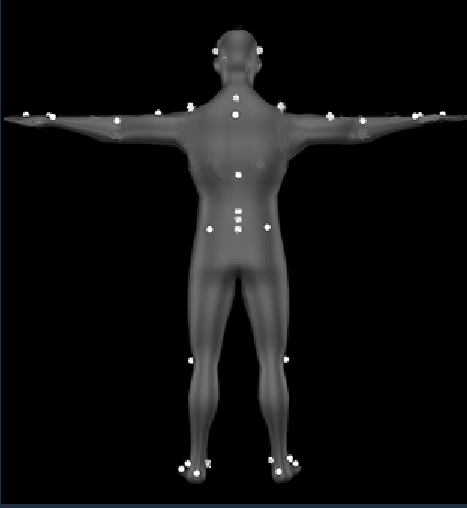

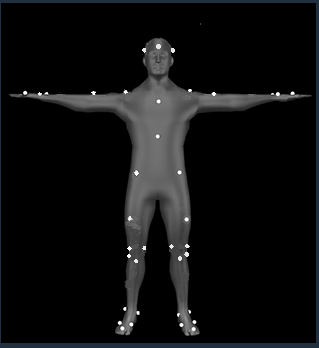

49 Markers descriptions

Item Number	Marker Name	Description
1	SGL	Glabella
2	R_HEAD	Superior to the right ear
3	L_HEAD	Superior to the left ear
4	R_SAE	Right scapular acromial edge
5	R_HUM	Proximal one-third of the right upper arm
6	R_HLE	Right humeral lateral condyle
7	R_RSP	Right radial styloid process
8	R_USP	Right ulnar styloid process
9	L_SAE	Left scapular acromial edge
10	L_HUM	Proximal one-half of the left upper arm
11	L_HLE	Left humeral lateral condyle
12	L_RSP	Left radial styloid process
13	L_USP	Left ulnar styloid process
14	SJN	Jugular notch of the sternum
15	SXS	Junction of sternum and ribs
16	CV7	Seventh cervical vertebra
17	TV2	Second thoracic vertebra
18	MAI	Dorsal symmetrical point of the sternum
19	LV1	First lumbar vertebra
20	LV3	Third lumbar vertebra
21	LV5	Fifth lumbar vertebra
22	R_HM2	Base of the right index finger
23	L_HM2	Base of the left index finger
24	R_IAS	Right Anterior Superior Iliac Spine
25	L_IAS	Left Anterior Superior Iliac Spine
26	R_FTC	Lateral side of the right thigh, at the proximal one-third
27	R_FLE	Lateral femur (right)
28	R_FAX	Proximal end of the right fibular head
29	R_TTC	The anterior-most margin of the right tibial tuberosity
30	R_FME	Medial aspect of the right femur
31	R_FAL	Lateral prominence of the right lateral malleolus
32	R_TAM	Lateral prominence of the right medial malleolus
33	L_FTC	Lateral side of the left thigh, at the proximal one-third
34	L_FLE	Lateral femur
35	L_FAX	Proximal end of the fibular head
36	L_TTC	Anterior-most edge of the tibial tuberosity
37	L_FME	Medial aspect of the femur
38	L_FAL	Lateral prominence of the left lateral malleolus
39	L_FCC	Insertion of the left Achilles tendon on the calcaneus
40	R_FM5	Medial margin of the right fifth metatarsal head
41	R_FM2	Dorsal margin of the right second metatarsal head
42	R_FM1	Dorsal margin of the right first metatarsal head
43	L_FM5	Medial margin of the left fifth metatarsal head
44	L_FM2	Dorsal margin of the left second metatarsal head
45	L_FM1	Dorsal margin of the left first metatarsal head
46	R_IPS	Right Posterior Superior Iliac Spine
47	L_IPS	Left Posterior Superior Iliac Spine
48	R_FCC	Calcaneal insertion of the right Achilles tendon
49	L_TAM	Lateral prominence of the left medial malleolus
