Baseline + Toe, Headband (53)

  1. To create a 53-point human body in Live mode, the model must wear a motion capture suit and correctly attach the 53 reflective markers. Each reflective marker should be visible in the 3D view, and there should be no other miscellaneous points in the venue. To create a 53-point human body, ensure that the number in the bottom left corner of the 3D view is 53 (9.2.1). Attach the points according to the stick map and guidance video. If attaching the markers is difficult or there are other issues, please contact a technical engineer.

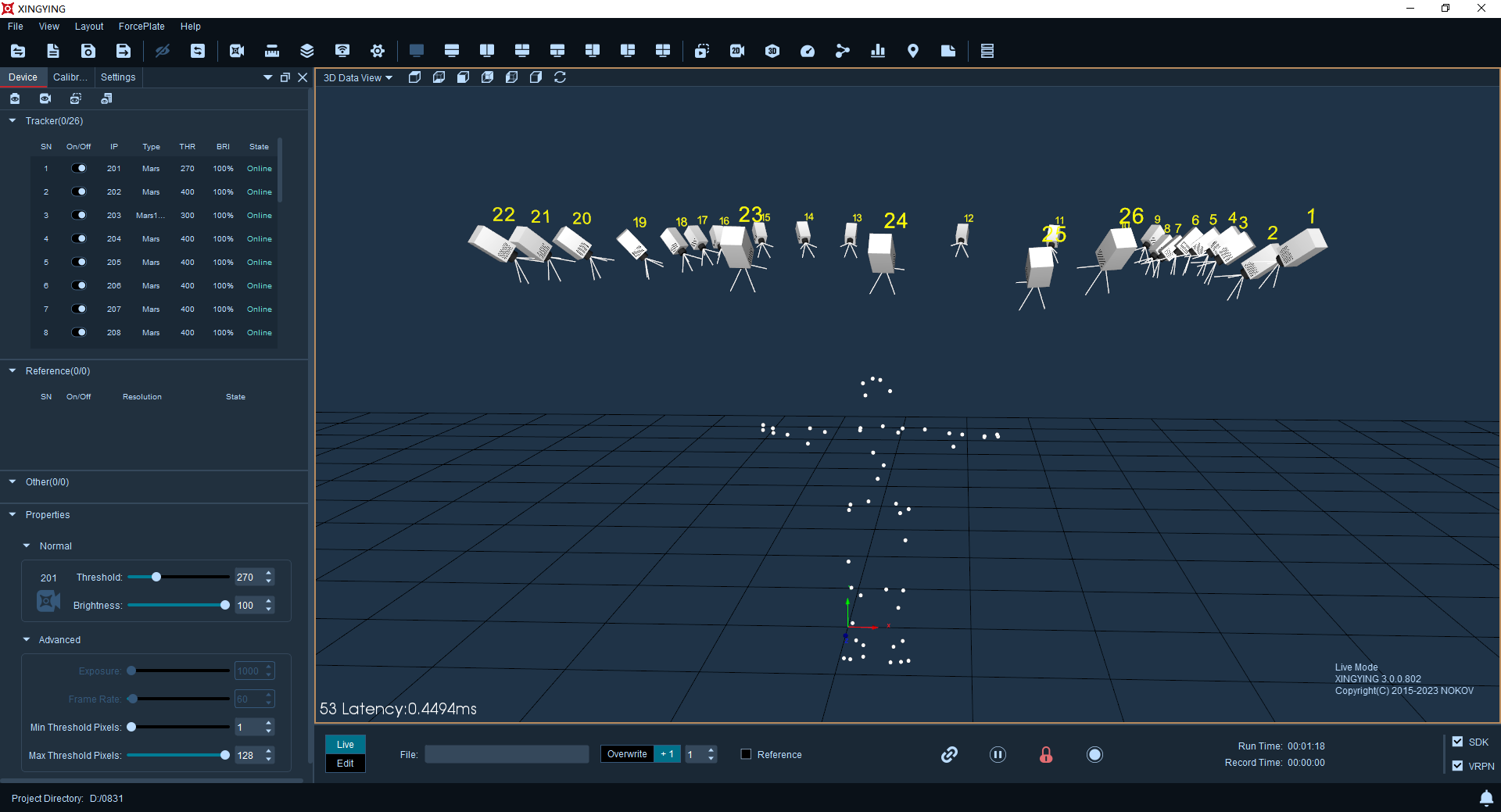

9.2.1

9.2.1

  1. Confirm the software is in playback status, and the model stands in the T-pose. When the calibration file sets the Y-axis upward, the model faces the Z-axis with arms parallel to the X-axis (when the Z-axis is upward, the model faces the negative direction of the Y-axis with arms parallel to the X-axis). Click Freeze, right-click in the 3D interface and select "Create Human". In the dropdown box of the "Create Human" window, choose "Baseline+Toe,Headband(53)". Place the mouse cursor on the marker attachment image and scroll the mouse wheel to view the marker positions from different angles (9.2.2). After confirming that the actual marker positions are consistent with those on the marker attachment image, click "Create" to generate the human model.

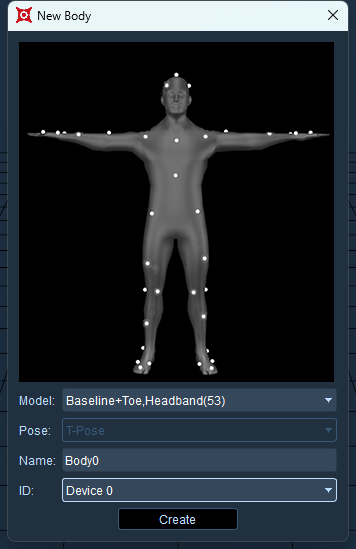

9.2.2

9.2.2

  1. The human model with 53 Markers(9.2.3) can be re recognized by clicking the "Reset IDs" button (9.2.4) above the 3D view in Live mode;

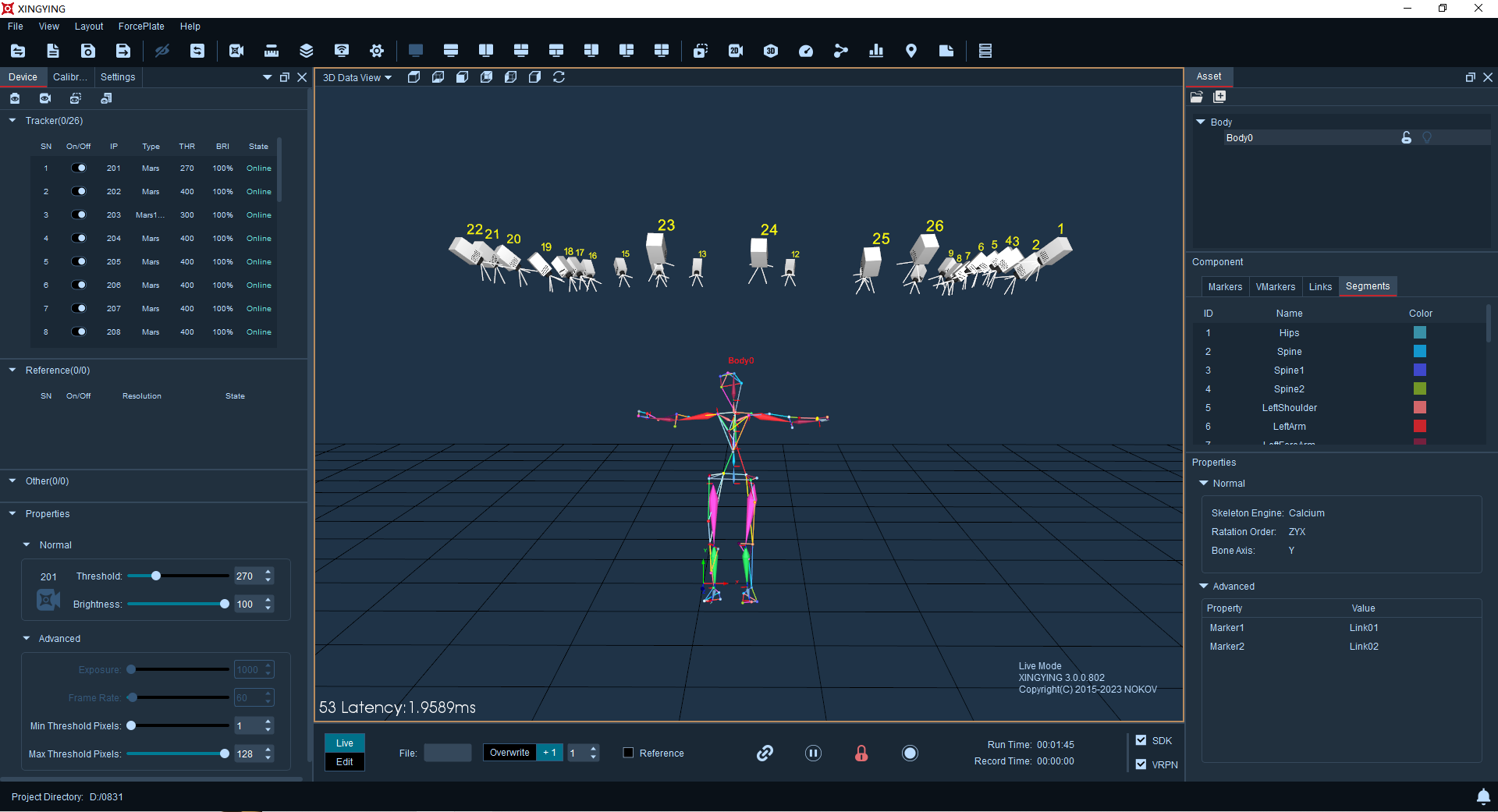

9.2.3

9.2.3

  1. If creating multiple human body templates, it is necessary to create a separate template for each one. After the model completely exits the venue, another model can enter, ensuring that there are only 53 marker points on the human body in the 3D view. Repeat the above steps. Multiple people can also stand in the capture field simultaneously, perform a T-Pose, and create a human body by selecting the marker points in the box.
  2. Release the frozen state of the 3D view. At this point, the model can move freely, and the human MarkerSet will follow the model's movements in real-time. In this state, data can also be collected directly.
  3. If the 53 Markers human body loses 1-3 points after walking out of the field, the human body can also be identified.
  4. The human skeleton with 53 keypoints has no specified orientation.
warning

Note1: If Marker related to the head of the human body are missing, recognition might not be possible.

Note2: Data recorded by None skeleton human body will cause exception when loading using software versions before 3.3.
