1. Device Properties

Motion Capture Camera

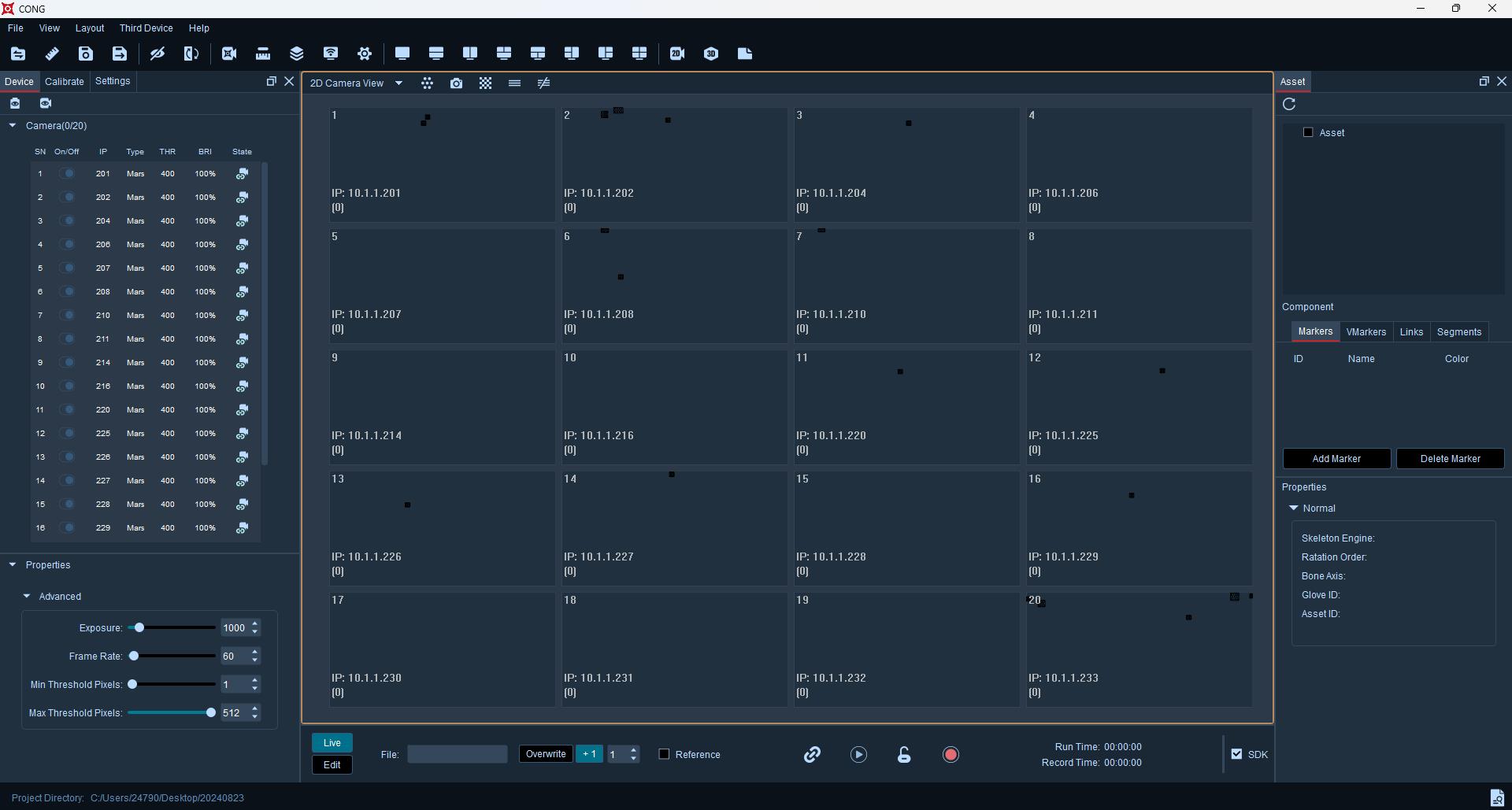

1. Connect the cameras, then click on the device icon at the top of the software to view each camera's device properties (6.1.1).
2. Serial Number: After connecting the cameras, they will be listed under the motion capture camera section. Clicking on a specific serial number will display information for that camera alone in the 2D view.
3. IP: Displays the IP address of the camera in the field, corresponding to the digital display below the camera.
4. Type: Displays the model of the camera in this view.
5. Status: Indicates the status of the camera. There are three states: online, frame drop, and offline.
