Before installing the lens, make sure the tripod and the three-way pan/tilt head are secure without any looseness.
Connect the lens to the three-way pan/tilt head using a quick release plate, then connect the three-way pan/tilt head
to the tripod. For ease of calibration, place the lens in the order of IP addresses indicated on the back label.
Connect the lens to a switch using an Ethernet cable. There is no specific order required for the interfaces, but do
not connect it to the LAN/NVR port of an 8-port switch. If using an 8-port switch, connect one Ethernet cable between
the LAN port of the switch and the network port of the computer.

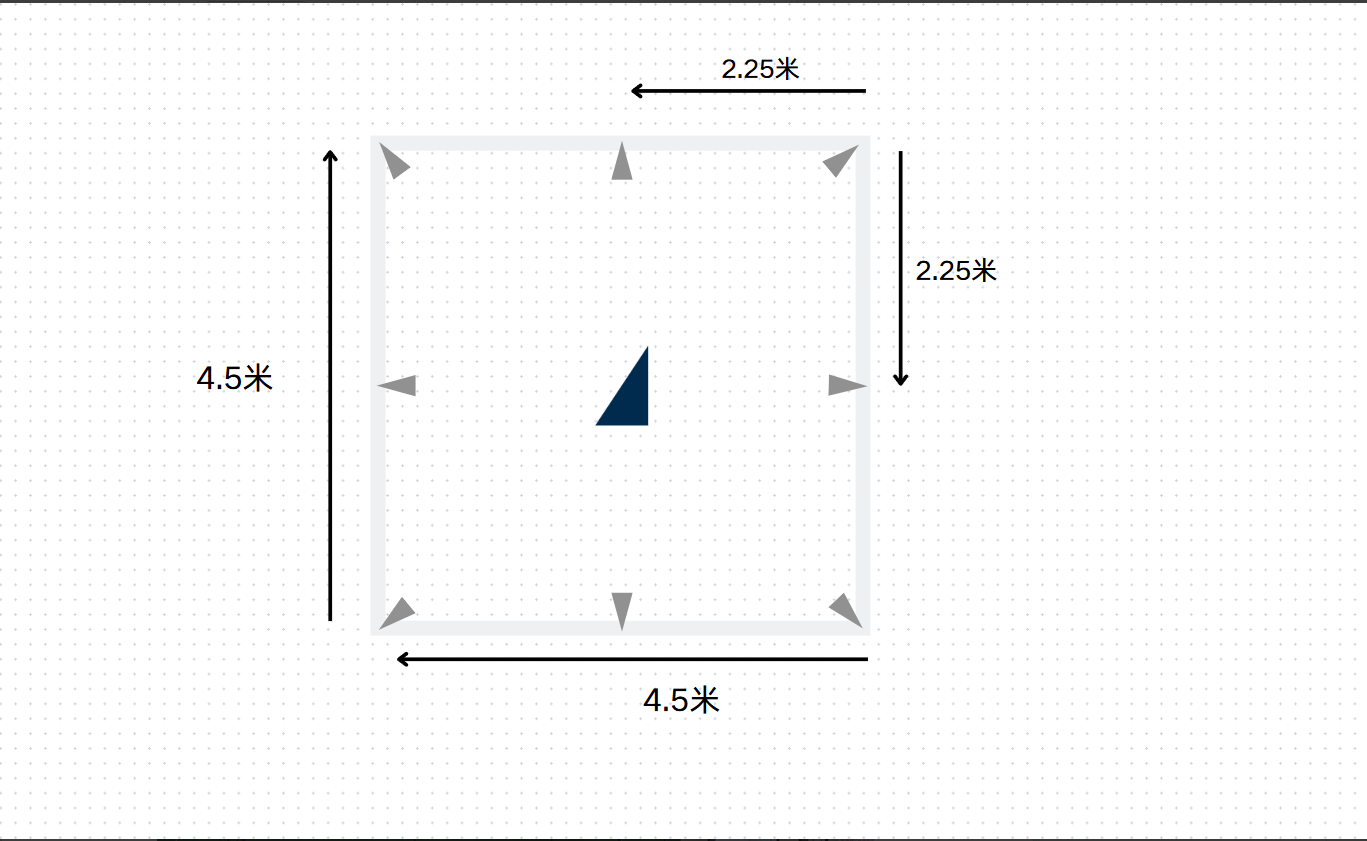

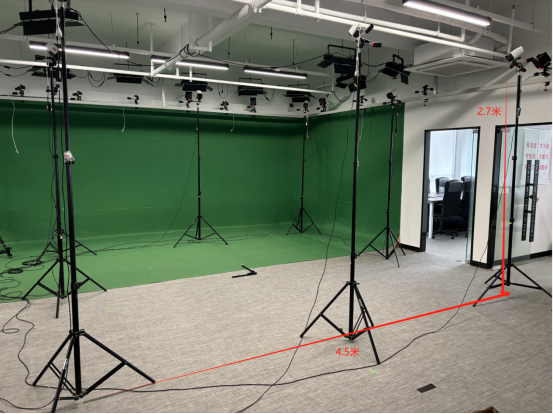

Lens placement area is 4.5m x 4.5m, with the lens height at 2.7m (distance from the center of the lens to the
ground).
