(3)Understand Live

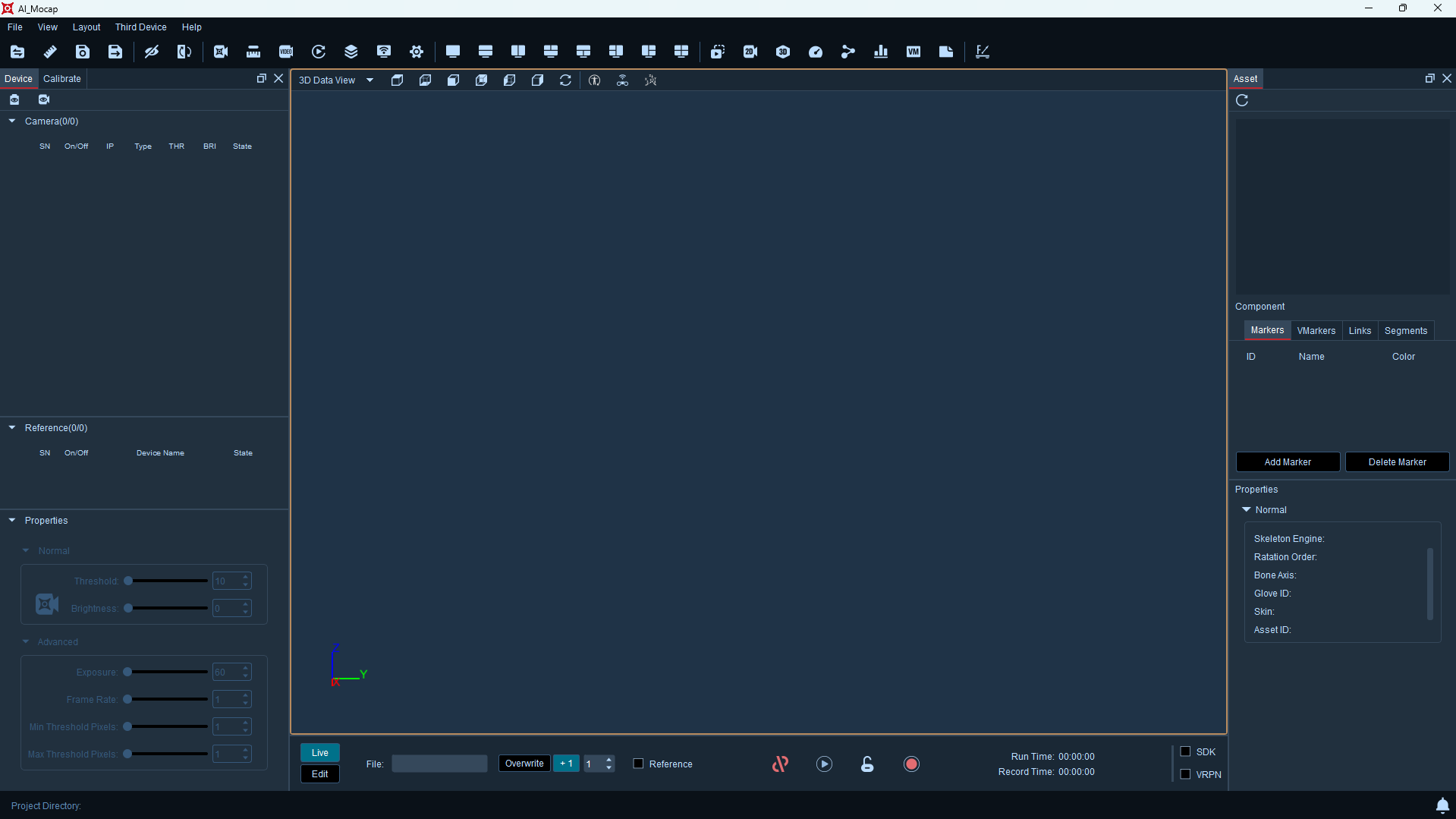

The central view of the software interface is a 3D view, and the functional panels are located on the left and right sides. Toolbar Buttons:

  • File Button: Used for loading and saving various files, as well as switching the working directory, etc.
  • Panel Settings Button: Used to hide or reset the functional panels on the software interface.
  • View Button: Includes the device panel, calibration panel, asset panel, data broadcast panel, and settings panel.
  • Chart Switch Button: By default, it is in the 3D view. You can click the inverted triangle icon in the upper left corner of the view to expand the drop-down list and select different chart displays in the list. You can also quickly open the chart in the toolbar above.
  • Layout Switch Button: You can select different layout displays in the toolbar.

Menu Bar: It includes five menu bars: File, View, Layout, Third-Party Devices, and Help. After clicking, you can select the functions within the corresponding menu bar.
