(1) Camera settings

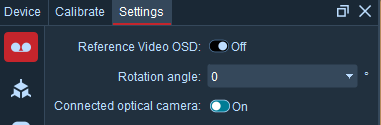

Click the settings button on the top toolbar of the software and select "Recording Settings" (7.1.1).

Reference Video OSD:​

  • When this option is checked, the resolution and frame rate of the USB lens will be displayed in the reference video view.

Connect Optical Lens:​

  • After turning this on, when connecting the lens, the number of connected optical lenses will be detected. If you are not using an optical lens, please do not turn on this switch.

Rotation Angle:​

  • The default rotation angle is set to 0. If the AI camera cannot rotate the viewing angle to the desired angle while using the Live software, you can set the rotation angle of the AI camera here. After setting, the viewing angle of the AI camera in the reference video will rotate to the set degree.
  • Before setting the rotation angle, please disconnect the software and close the reference video view so that it is not displayed. After setting the rotation angle, open the reference video again.
