(2) Markerless human body

Markerless Body（22）

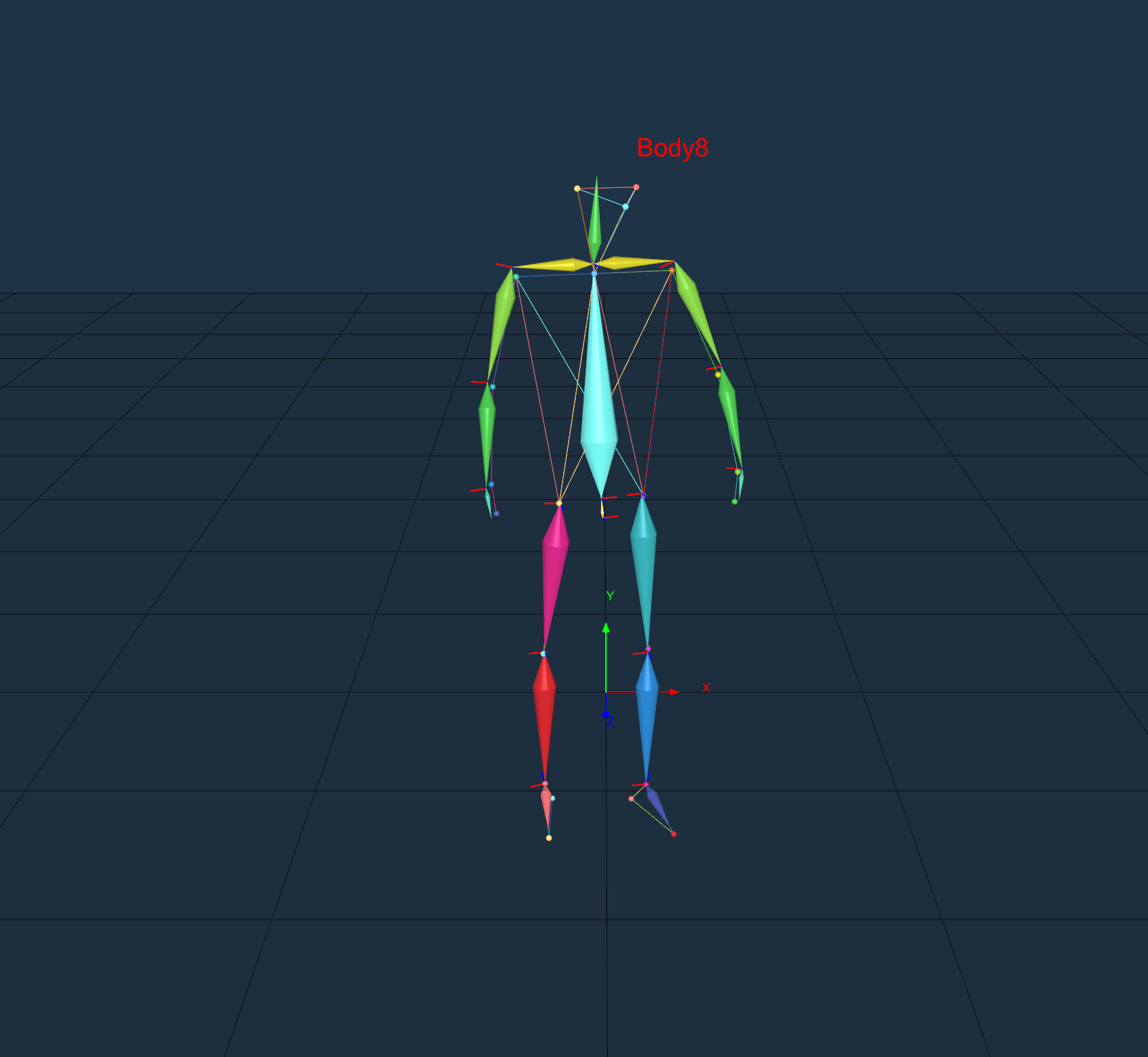

  • Create a Markerless Body. The model needs to face the positive direction of the Z-axis, stand still in an A-Pose, click to freeze the frame, right-click to create a human body, select "Markerless Body (22)" in the model dropdown box, enter the name of the created human body or use the default human body name. After clicking create, the Markerless human body model is created successfully. After unfreezing the frame, the model can move freely in the capture area.

Markerless Body+Hand（22）

  • The Live software supports the access of third-party gloves. After wearing third-party gloves, a Markerless Body with fingers can be created.
  • Please read the brands and descriptions of third-party gloves currently supported by AI Mocap.https://app.gitbook.com/s/fFOzbZzqEIXtcMJqykWS/shi-liu-di-san-fang-she-bei-jie-ru/guan-xing-shou-tao

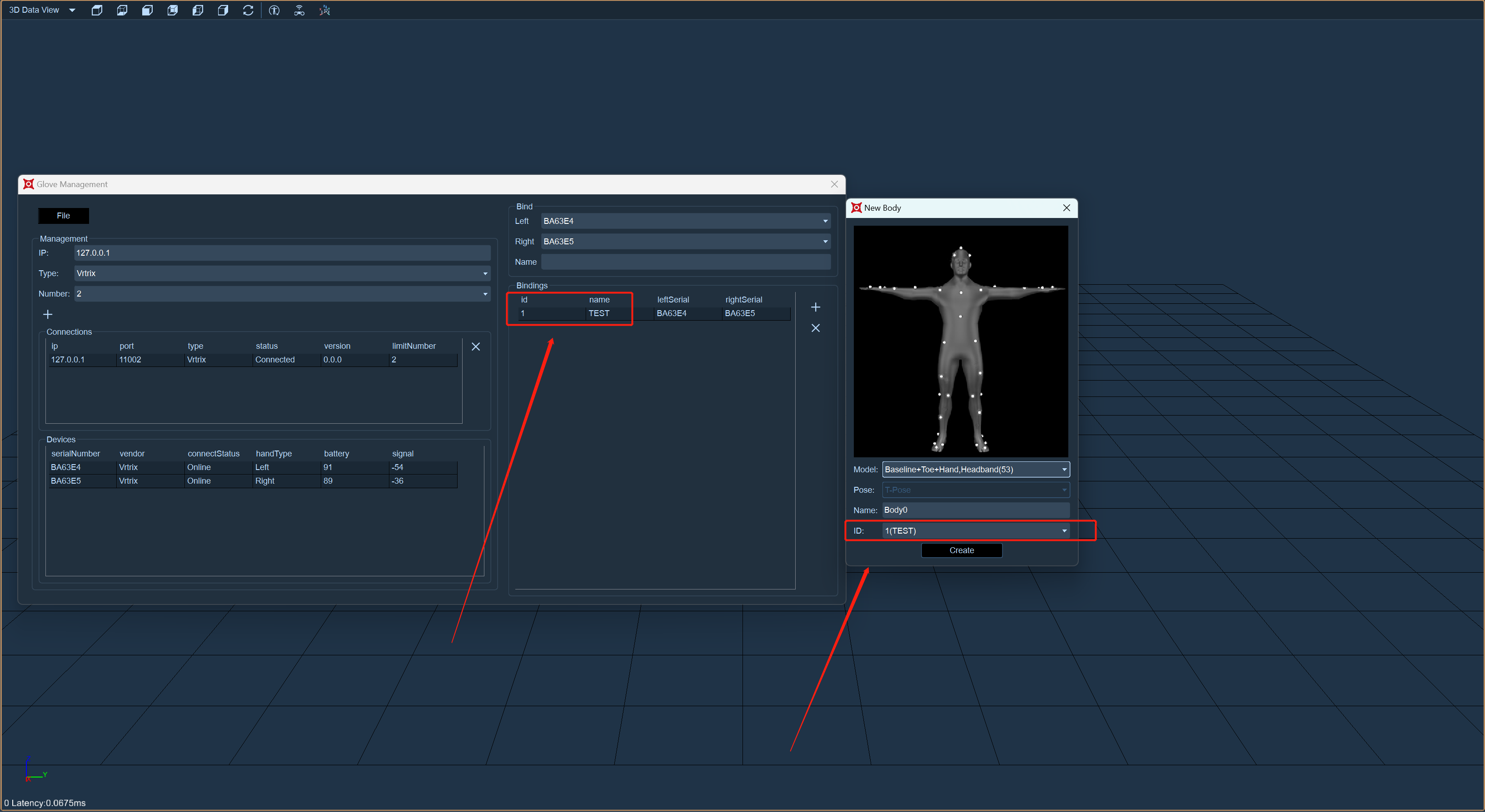

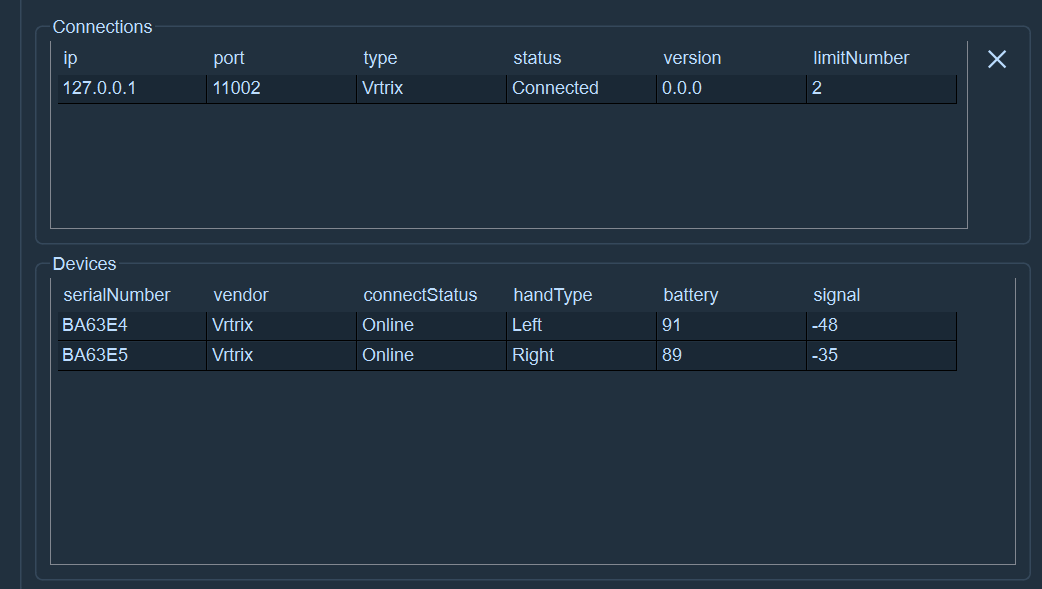

  • Open the third-party device, select the glove management option, select the type (brand) of the current glove in the drop-down box, click "+" to add a connected queue. After connecting to the glove, the device list will display the information of the current glove.
  • In the name input box on the right side of the window, enter a custom name. Click the "+" below to add a binding set and close the window.
  • The model wears gloves and stands in an A-Pose. Click to freeze the frame. Right-click to create a human body. In the model dropdown box, select "Markerless Body+Hand (22)". Enter the name of the created human body or use the default human body name. In the number dropdown box, select the name you just customized.
  • After clicking "Create", the Markerless human body model with fingers is created successfully. After unfreezing the frame, the model can move freely in the capture area.
