Version 4.7 of XINGYING supports Delsys muscle electrical signal collection, with a sampling rate of up to 2000 FPS.

  1. Install the Delsys EMG management software trigno-discover_1-7-0
image (45)

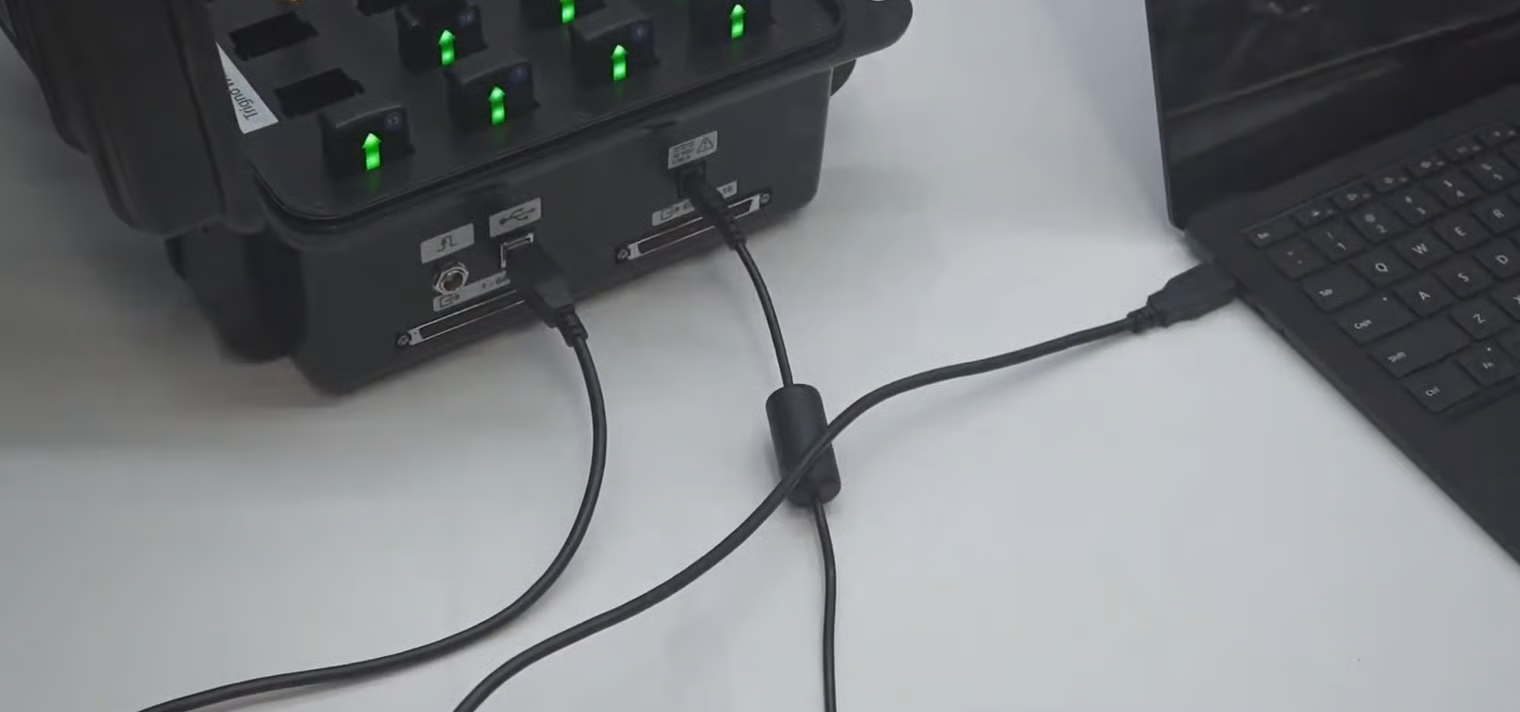

  1. Power on the device and connect the EMG device's USB cable to the computer's USB port.
image (46)
  1. Connect the charging station to its power supply and place the EMG sensors in it. The arrow indicator on each sensor will turn red.
  2. Remove a sensor from the charging station. Its arrow indicator will change from red to purple. Before the purple light turns off, lay the sensor flat, with the arrow facing upward, on the unlock symbol in the middle of the far-right section of the charging station. Wait for the arrow indicator to turn green.

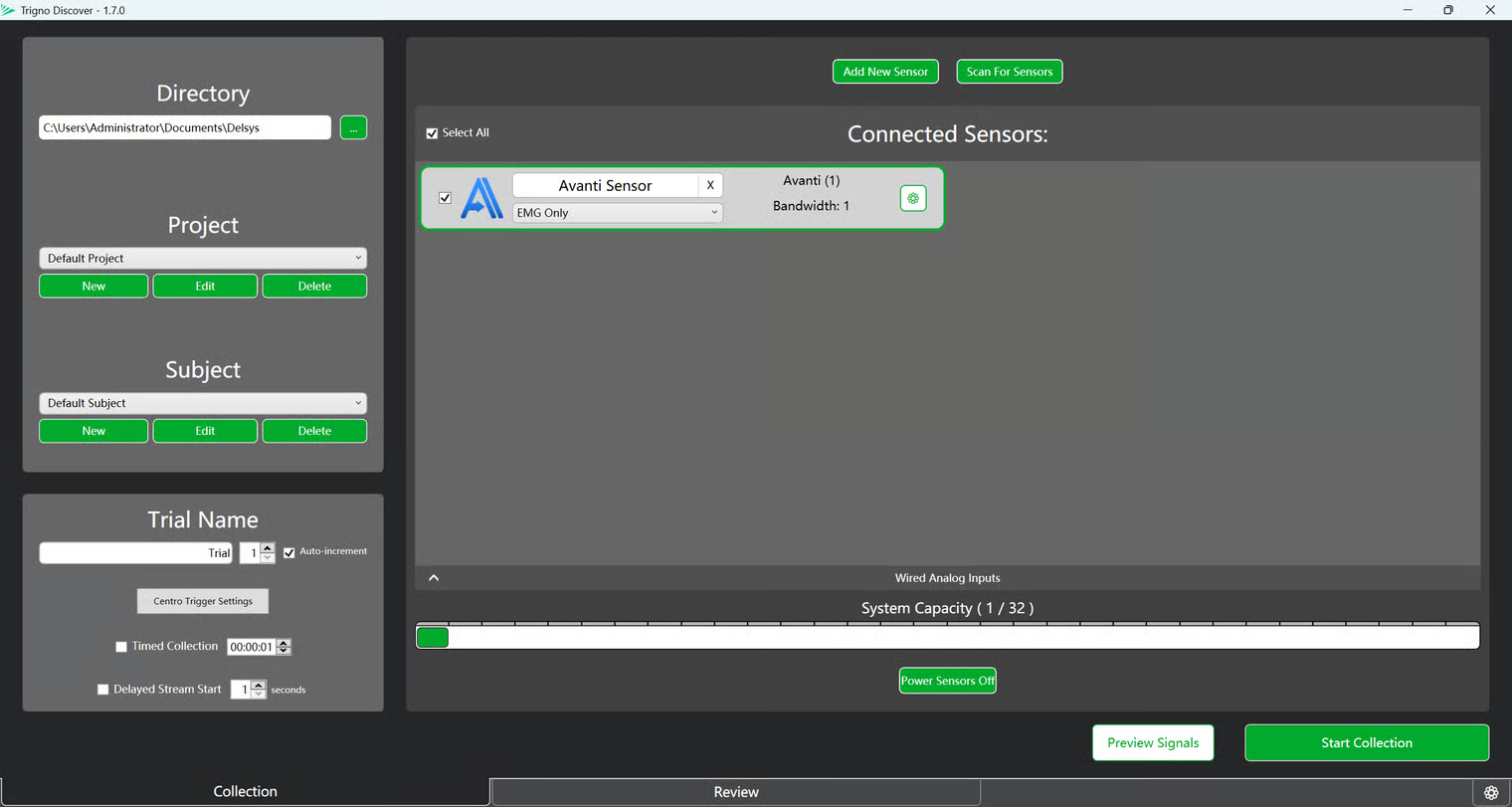

  3. Use Trigno Discover to connect to the EMG system. After confirming that both the EMG device and sensors are functioning properly, close Trigno Discover.
image (49)

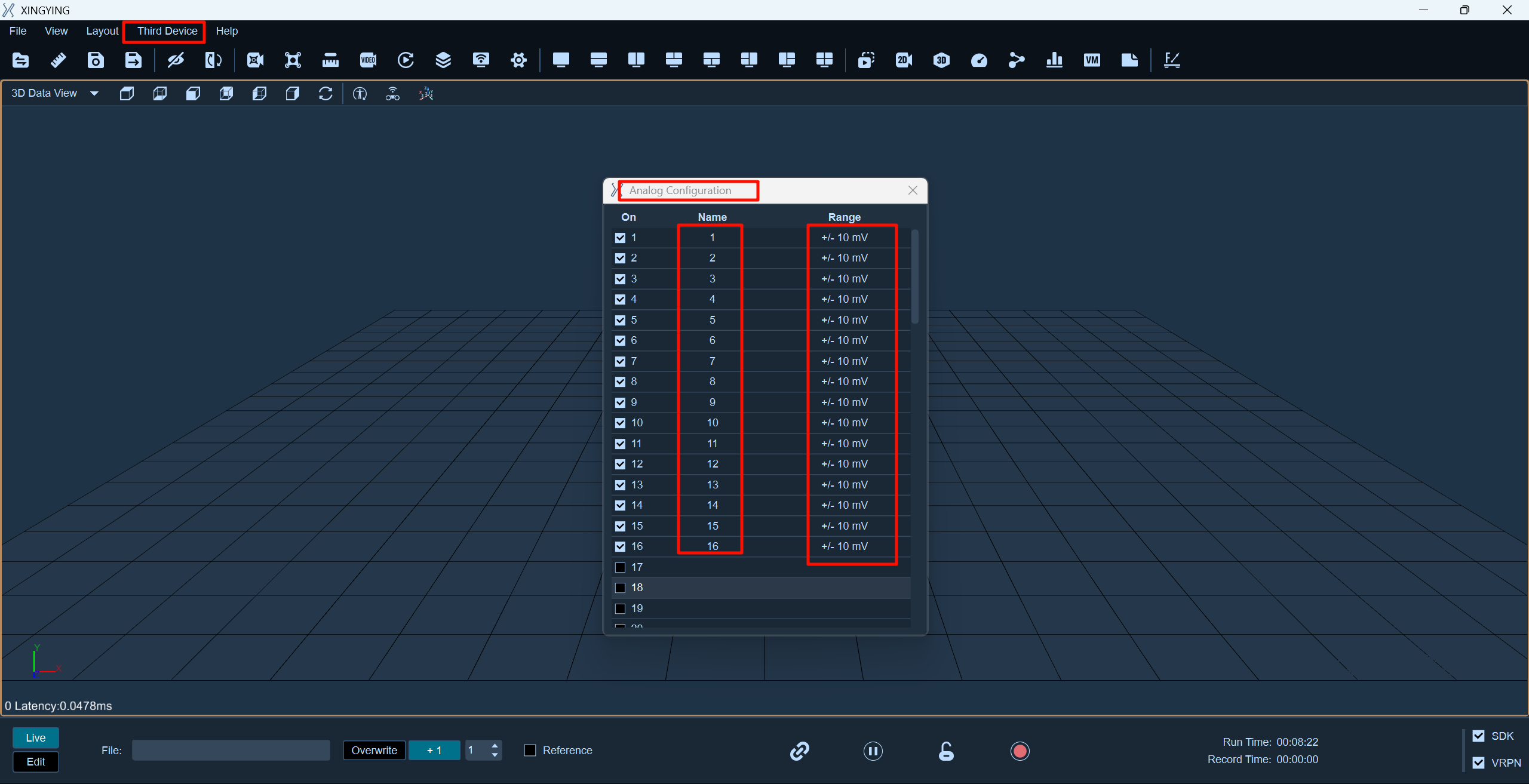

  1. Open the XINGYING software and click on "Third-Party Devices" – "Analog Configuration". Add channels according to the number of EMG sensors being used (the number of channels must correspond exactly to the number of sensors in use. If some sensors are no longer used, the corresponding channels must be deleted to ensure consistency between the number of active sensors and the number of channels). The EMG device range is typically configured to either 10 mV or 50 mV.
image (50)

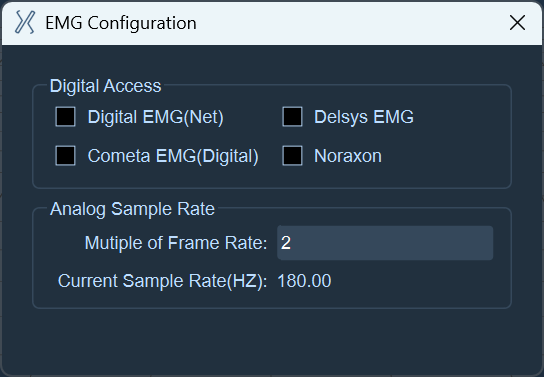

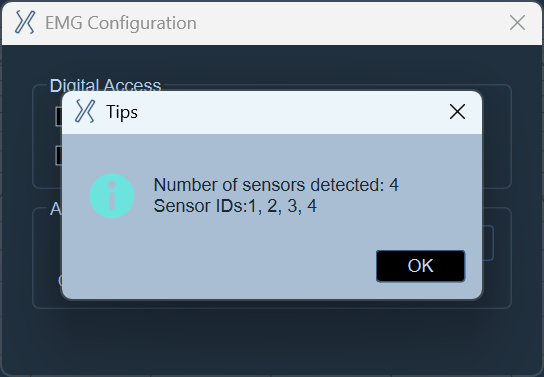

  1. Connect the EMG. Open the "Third-Party Devices – EMG Configuration" interface, set the Multiple of Frame Rate, and check the option "Delsys EMG". The software will begin connecting to the EMG device. Once the connection is successful, a pop-up window will display the number and IDs of the connected sensors.
image (53)
image (54)

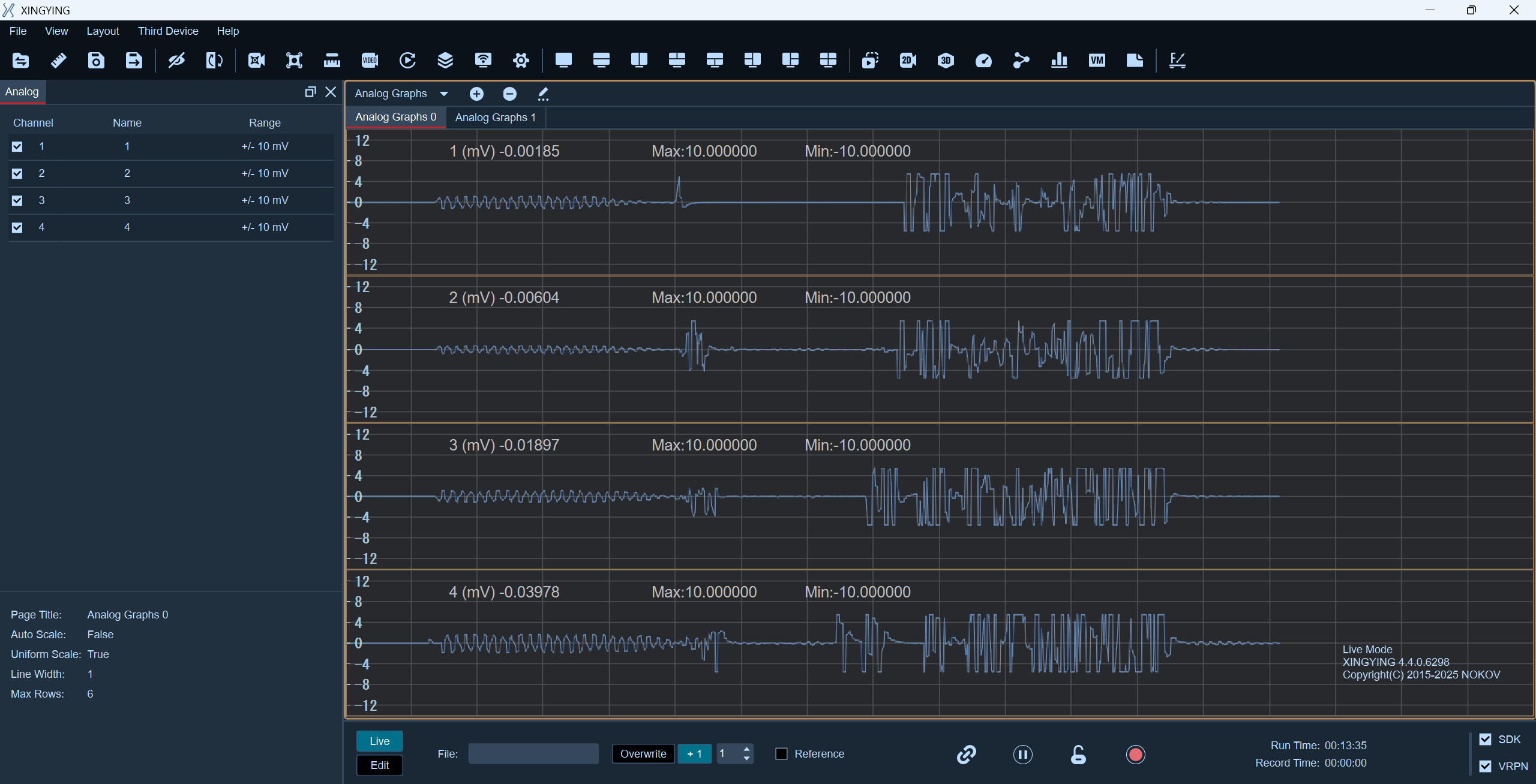

  1. Connect the cameras and start playback. Open the Analog Graphs, and you will be able to see that the EMG data is now being properly displayed in XINGYING.
image (55)
info
  1. If the customer is still using an older version of the EMG program, please refer to the XingYing operation manual for historical versions. The link is as follows:

https://xingying-docs.nokov.com/xingying/XingYing4.3-EN/-third-party-adaptation/emg/-force-plate
