Lens Angle: For the four lenses positioned at the center of the square area, facing opposite sides, tilt them
downward by 45°. For the four lenses located at the corners, facing diagonally, tilt them downward by 40°.

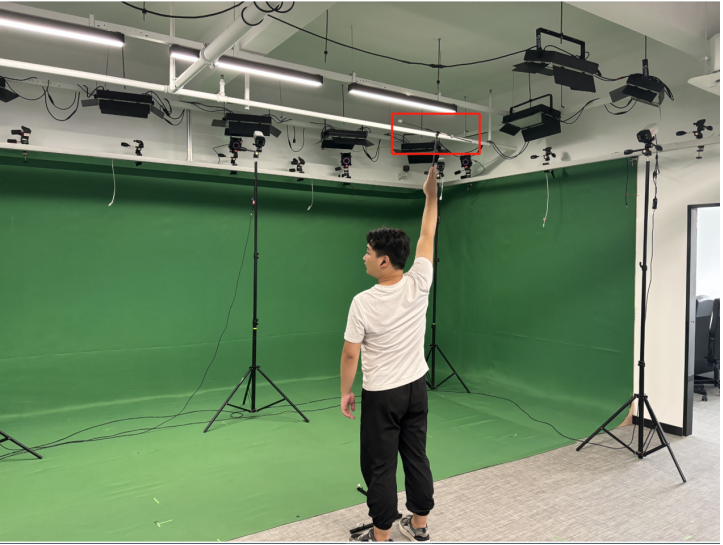

First, ensure that all lenses can see the L-shaped bar in the middle of the 2D view. Then, have the model stand in
the middle of the field holding a T-shaped bar (ensuring the height matches the highest position of the hands when
the individual jumps in place to ensure proper capture of the movements). The lenses should be able to see the
T-shaped bar (as indicated in the red box below) and ensure that there is a certain distance between the T-shaped bar
and the upper edge of the lens.
The position of the T-shaped bar in the 2D view is as shown in the image below.
Recommended settings: Brightness 40, Threshold 400, Frame Rate 60. Keep all other parameters at the default settings
in the software.
