(2) Assets

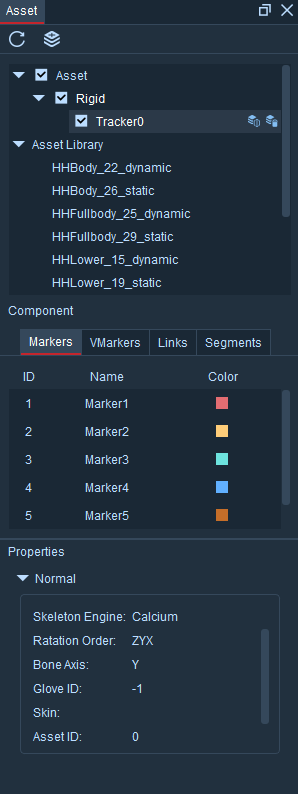

After opening the software, assets will be displayed on the right side of the software interface. The asset list will automatically load all asset files in the working directory.
In the asset list, clicking the checkbox in front of an asset can load the asset. Unchecking it means unloading the asset.
Behind the asset name, there are rename and delete buttons. Clicking these buttons can perform rename and delete operations on the asset. After modifying the asset, an asterisk and a save button will appear in front of the asset name. Clicking the save button saves the modifications to the asset.

Component

In the component, you can view the information of the mars file selected in the asset list.
Mark: Display the serial number, name, size, and color of the composition points of the template.
Virtual marker: Only show virtual maker points for the human body.
Connection: Display the connection number, name, and color between each maker.
Joint: Display the bone information of rigid bodies or human bodies.

After selecting a mars file in the asset list, in the Properties - General list, the bone type, Euler angle order ( default ZYX), and bone orientation of the mars file will be displayed. If a human body template with gloves is selected, then the glove number will also be displayed in this list.

Attribute - Advanced

In "Component - Joint", select a bone name. In the "Attribute - Advanced" list below, the various attributes of this bone segment will be displayed.
