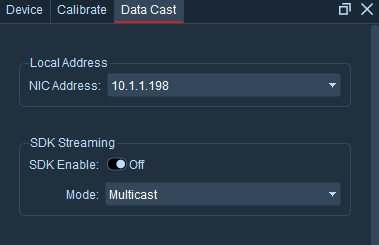

Click "Data Broadcast" at the top of the software interface. The default network card address of the Live software
is "10.1.1.198". The IP address can also be changed in the drop-down box.
The Live software supports secondary development of the SDK. It can be used on the local machine or on other
computers in the same IP network segment by broadcasting data. The IP address can be changed through the drop-down box
in "Network Card Address". The set network card address is the address where the service-side data is sent. To receive
data captured automatically, the client computer needs to be in the same network segment as the service side.
The software supports dynamic IP acquisition function. There is no need to restart the software. It can be used with
plugins such as C++/C# to obtain motion capture data in real time. For plugins, please consult our technical
engineers.
SDK stream: The "Use SDK" option is not checked by default. When using this function, it can be checked when the
camera is not connected or in a paused playback state. After checking the SDK, the software will save this
configuration. Subsequent startups of the software will have the SDK checked by default. After enabling the SDK, the
motion capture data will be broadcast and sent outwards through the network card IP address set according to the SDK
protocol. For the "Mode" below, the software supports "unicast" and "multicast" modes. The default setting is "
multicast" mode.
